01 - Compressor Parts (esr)

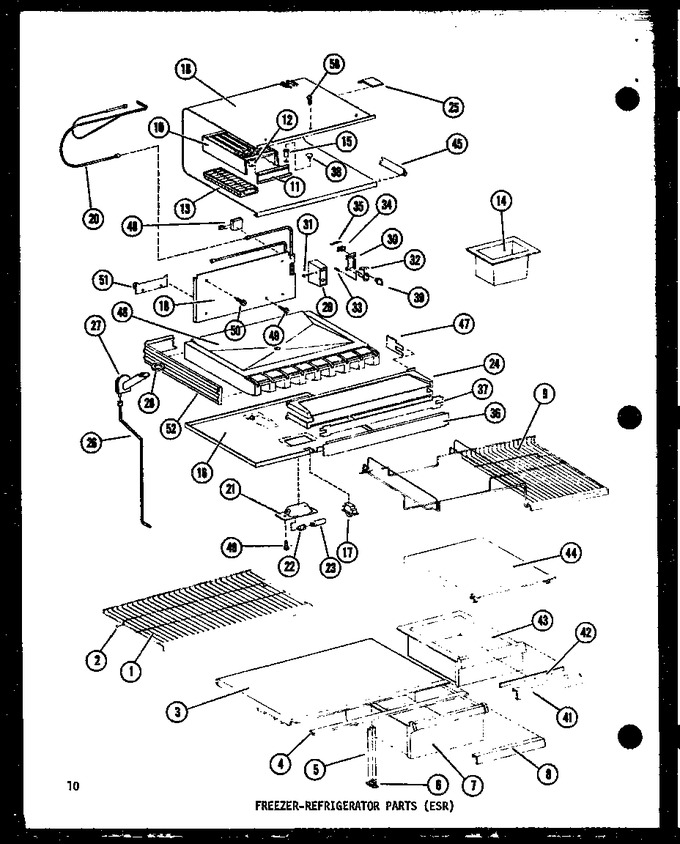

02 - Fz-ref Parts (esr)
03 - Lower Parts (esr)
04 - Upper Door Parts (esr)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7256601 | Shelf, Glide Out |
|
- | |||||
| 2 | B5753501 | Cap |
|
- | |||||
| 3 | D7261303 | Crisper Top |
|
- | |||||
| 4 | B0570905 | Trim-crisper Top |
|
- | |||||
| 5 | B0571002 | Support |
|
- | |||||
| 6 | B5749401 | Support Post |
|
- | |||||
| 7 | D7261805 | Pan, Crisper |
|
- | |||||
| 8 | C3696504 | Trim-crisper Handle |
|
- | |||||
| 9 | D7276301 | Shelf, Step, Meatkeeper |
|
- | |||||
| 10 | D7193005 | Tunnel-ice Tray |
|
- | |||||
| 11 | C8706101 | Door, Tunnel |
|
- | |||||
| 12 | A3214701 | Hinge Pin |
|
- | |||||
| 13 | WP841180A | Tray, Ice (Replaces: C8717801) |
|
Immediately | $ 47.84 | ||||
| 14 | D7272701 | Ice Container |
|
- | |||||
| 15 | A3224902 | Drain Tube |
|
- | |||||
| 16 | D7272802 | Top Shelf |
|
- | |||||
| 17 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 18 | R0170009 | Evap Assy |
|
- | |||||
| 20 | D7278102 | Heat Ex |
|
- | |||||
| 21 | C8730101 | Shield, Light |
|
- | |||||
| 22 | C8708801 | Socket-light |
|
- | |||||
| 23 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 24 | D7276501 | Breaker-mullion |
|
- | |||||
| 25 | C8759301 | Cover Plate |
|
- | |||||
| 26 | C8756901 | Drain Tube |
|
- | |||||
| 27 | C3630903 | Elbow |
|
- | |||||
| 28 | A3132301 | Gasket |
|
- | |||||
| 29 | D7278004 | Escutcheon |
|
- | |||||
| 30 | C8702602 | Bracket, Control |
|
- | |||||
| 31 | M0230926 | Screw |
|
- | |||||
| 32 | C3615010 | Control, Temperature |
|
- | |||||
| 33 | A3012520 | Plastic Tubing |
|
- | |||||
| 34 | M0341202 | Switch |
|
- | |||||
| 35 | M0305301 | Diode |
|
- | |||||
| 36 | C8770909 | Ctr Mullion C |
|
- | |||||
| 36 | C8770911 | Ctr Mullion Ag |
|
- | |||||
| 36 | C8770910 | Ctr Mullion Av |
|
- | |||||
| 36 | C8770908 | Ctr Mullion W |
|
- | |||||
| 36 | C8770912 | Ctr Mullion Al |
|
- | |||||
| 37 | C8777701 | Center Heater Kit |
|
- | |||||
| 38 | B5721101 | Drain Plug |
|
- | |||||
| 39 | D7009801 | Knob |
|
- | |||||
| 40 | C8769101 | Heater-ref Evap A |
|
- | |||||
| 41 | C3623002 | Trim, Handle |
|
- | |||||
| 42 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 43 | D3975703 | Pan, Meat Keeper |
|
- | |||||
| 44 | D7001104 | Top, Meat Keeper |
|
- | |||||
| 45 | C8758705 | Gasket-evap |
|
- | |||||
| 45 | C8758702 | Gasket-evap |
|
- | |||||
| 47 | B5762802 | Gasket Rh Mullion K |
|
- | |||||
| 47 | B5762801 | Gasket Lh Mullion K |
|
- | |||||
| 48 | D7277502 | Insulation Block |
|
- | |||||
| 49 | WP489464 | Screw A (Replaces: M0236717) |
|
Immediately | $ 8.38 | ||||
| 50 | M0236721 | Screw K |
|
- | |||||
| 51 | B5754001 | Clamp, Control Bulb |
|
- | |||||
| 52 | B5757802 | Gasket |
|
- |
