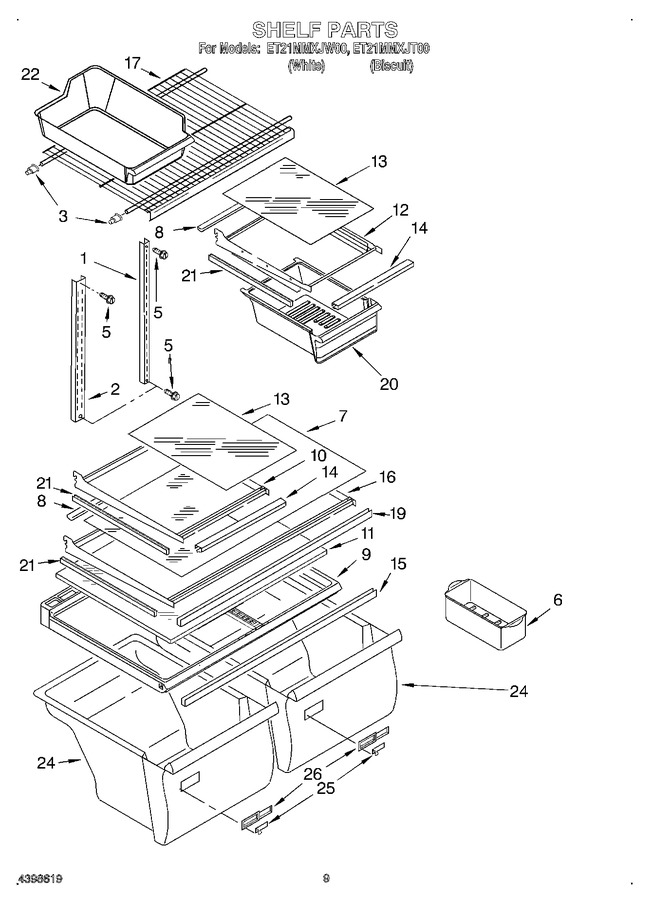

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	W10136387A		Egg Bin   (Replaces: 2182730)				$ 19.54
7	2199192		Glass, Full Shelf		Appelez-nous	-
8	2199185		Trim, Shelf Rear		Appelez-nous	-
9	WP2314549		Crisper Cover   (Replaces: 2210524)				$ 279.10
10	2201102E		Shelf, Cantilever		Appelez-nous	-
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2201106		Pan, Shelf Cantilever				$ 77.79
13	2200987		Glass, Shelf		Appelez-nous	-
14	2201098		Trim, Shelf Front		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2201104E		Shelf, Full Cantilever		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
19	2201100		Trim, Shelf Front		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2201032K)			Immediately	$ 159.64
21	2201089		Trim, Shelf Side		Appelez-nous	-
22	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
24	W10854037		Crisper Pan (includes 25 & 26)   (Replaces: 2200658)			Immediately	$ 179.19
25	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
26	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.81
