SELECT A DIAGRAM

01 - Cabinet

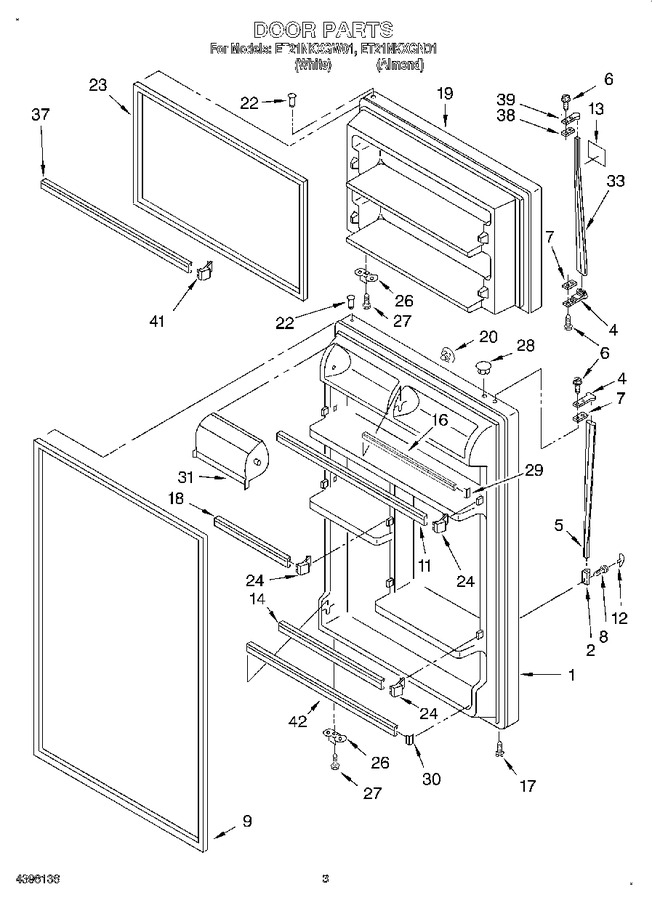

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183946		Refrigerator Door (includes No.9 & No.22) (white)		Appelez-nous	-
1	2183947		Refrigerator Door (includes No.9 & No.22) (almond)		Appelez-nous	-
2	819342		End Cap (almond)   (Replaces: 2183142)			Immediately	$ 47.96
2	819342		End Cap (white)   (Replaces: 2183141)			Immediately	$ 47.96
4	819342		End Cap, Handle (2) (almond)   (Replaces: 9791772)			Immediately	$ 47.96
4	819342		End Cap, Handle (2) (white)   (Replaces: 9791771)			Immediately	$ 47.96
5	2148036		Handle, Center (almond)		Appelez-nous	-
5	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
9	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
11	2195944		Trim, Door Shelf				$ 47.99
12	9791769		Cover, Screw (white)				$ 5.70
12	9791770		Cover, Screw (almond)		Appelez-nous	-
13	2175384		Nameplate (almond Model)		Appelez-nous	-
13	2175383		Nameplate (white Model)		Appelez-nous	-
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 91.78
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
17	WP8281206		Screw   (Replaces: 489028)				$ 8.37
18	2195945		Trim, Door Shelf		Appelez-nous	-
19	W11023679		Freezer Door (includes No.22 & No.23) (white)   (Replaces: 2182489)				$ 758.35
19	2184400		Freezer Door (includes No.22 & No.23) (almond)		Appelez-nous	-
20	2189008		Hole Plug (almond)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
22	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159060		Door Gasket, Magnetic (mist Beige)				$ 336.01
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.72
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
28	989196		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218118		Compartment Door   (Replaces: 2177130)				$ 81.92
33	2171044		Handle, F.c. (almond)		Appelez-nous	-
33	WP2162555		Handle, F.c. (white)   (Replaces: 2171043)			Immediately	$ 157.62
37	2195947		Trim-door (2)				$ 50.94
38	943187		Shim				$ 25.14
39	819342		Handle End (almond)   (Replaces: 9791777)			Immediately	$ 47.96
39	819342		Handle End (white)   (Replaces: 9791776)			Immediately	$ 47.96
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 114.74
100	2182576		Featurepak (includes 11, 12, 14, 18, 24, 29, 30, 31, 37, 41, 42) Also See Shelf Pts.pg.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
