SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

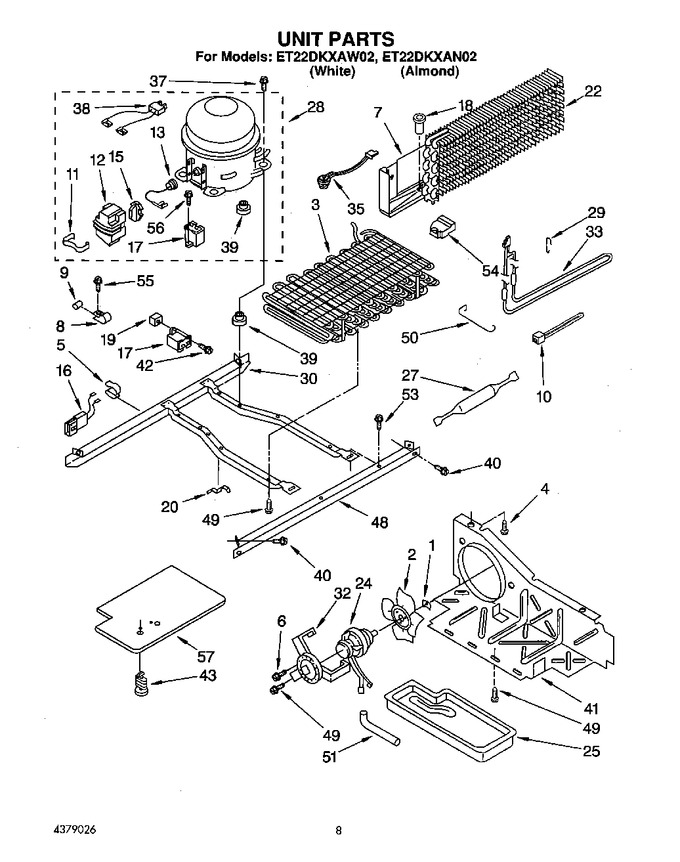

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	851732		Fan, Blade		Appelez-nous	-
3	2154010		Condenser Assembly		Appelez-nous	-
4	489050		Screw				$ 692.56
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
8	2159720		Tube Clamp		Appelez-nous	-
9	2149670		Dampener		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	1108114		Overload (service)		Appelez-nous	-
13	4387535		Overload (production)   (Replaces: 2159596)				$ 191.05
15	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running Capacitor (service)   (Replaces: 1118581)			Immediately	$ 58.86
17	2154565		Running Capacitor (production)		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
22	2153978		Evaporator		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154798)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	W10439652		Compressor (includes Items 11 12, 13, 15, 17, 38, 39 & 56)   (Replaces: 2154557)				$ 442.20
28	876765		Also Order Tube Kit)				$ 90.65
29	2149120		Support, Heater		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 47.89
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	2155566		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	489396		Clip				$ 11.26
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
50	1105612		Guard, Fan				$ 42.61
51	2154119		Tube, Drain		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
54	2159708		Support, Evap. (l.s.)		Appelez-nous	-
54	1118805		Support, Evap. (r.s.)		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.76
57	876764		Valve, Access(3/16``)			Immediately	$ 95.92
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 137.25
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
57	2160505		Cover, Unit Bottom		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 134.49
