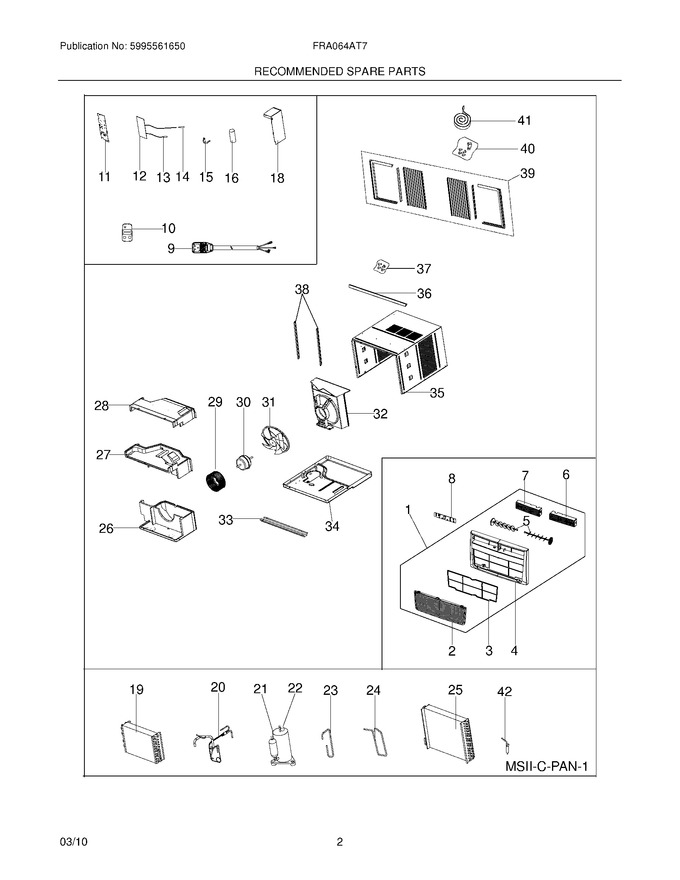

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304477046 | Front Assembly,complete Panel |
|
- | |||||
| 2 | 5304477047 | Panel,front Grille ,tilt-out |
|
$ 28.04 | |||||
| 3 | 5304536669 | Filter,air ,plastic Frame (Replaces: 5304477048) |
|
$ 9.48 | |||||
| 4 | 5304477049 | Frame,front Assembly |
|
- | |||||
| 5 | 5304477050 | Louver,vertical |
|
- | |||||
| 6 | 5304477051 | Louver,horizontal,right,horizontal ,right |
|
- | |||||
| 7 | 5304477052 | Louver,horizontal ,left |
|
- | |||||
| 8 | 5304476799 | Pc Board,diaplay/input |
|
- | |||||
| 11 | 5304477053 | Cover,electrical Box |
|
- | |||||
| 15 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 18 | 5304476551 | Control Box |
|
- | |||||
| 26 | 5304476557 | Scroll,blower Housing ,bottom |
|
- | |||||
| 27 | 5304476558 | Scroll,blower Housing ,middle |
|
- | |||||
| 28 | 5304476559 | Scroll,blower Housing ,top |
|
- | |||||
| 31 | 5304476052 | Fan Blade,axial |
|
$ 52.92 | |||||
| 32 | 5304476560 | Shroud,condenser/fan |
|
- | |||||
| 33 | 5304476521 | Rail,shutter Track ,bottom |
|
- | |||||
| 34 | 5304476561 | Base,unit Chassis |
|
- | |||||
| 35 | 5304476562 | Cabinet,wrapper/sleeve |
|
- | |||||
| 36 | 5304477054 | Rail,shutter Track ,top |
|
$ 50.09 | |||||
| 37 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 38 | 5304476523 | Retainer,shutter ,cabinet Sides |
|
$ 6.54 | |||||
| 39 | 5304476524 | Window Filler Kit,slider Panels ,accordion |
|
$ 20.90 | |||||
| 40 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 41 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F10 | 5304476802 | Remote Control,transmitter |
|
$ 115.67 | |||||
| F12 | 5304476803 | Pc Board,main ,control/power |
|
- | |||||
| F13 | 5304521225 | Thermistor,evap Sensor ,defrost (Replaces: 5304471275) |
|
- | |||||
| F14 | 5304476053 | Thermistor,temp Sensor ,indoor |
|
$ 28.93 | |||||
| F16 | 5304476074 | Capacitor,compressor |
|
- | |||||
| F19 | 5304477065 | Evaporator,with Cap Tube |
|
- | |||||
| F20 | 5304477066 | Tube,capillary |
|
- | |||||
| F21 | 5304476073 | Compressor,with Overload |
|
- | |||||
| F22 | 5304476301 | Overload Protector,compressor |
|
- | |||||
| F23 | 5304476565 | Tube,suction |
|
- | |||||
| F24 | 5304477063 | Tube,discharge |
|
- | |||||
| F25 | 5304476567 | Condenser |
|
- | |||||
| F29 | 5304476051 | Blower Wheel,centrifugal |
|
- | |||||
| F30 | 5304476050 | Motor,fan |
|
$ 210.13 | |||||
| F42 | 5304476201 | Drier-filter |
|
$ 38.98 | |||||
| F9 | 5304476515 | Power Cord,electric ,lcdi |
|
- |
