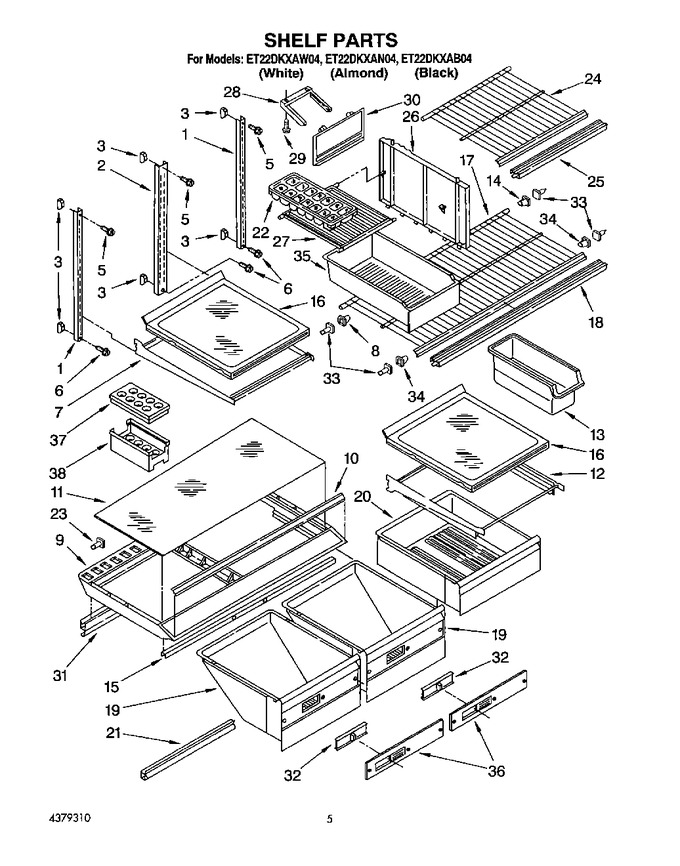

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.92
7	2160306		Shelf, Cantilever		Appelez-nous	-
8	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 41.66
9	2148600		Crisper Cover		Appelez-nous	-
10	2172711		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	2166327		Shelf Assembly, Cantilever		Appelez-nous	-
13	WP982704		Container   (Replaces: 1127196)				$ 32.55
14	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 41.66
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	2160318		Shelf Assembly, Spillguard (5)		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	2148535		Trim, Shelf Front		Appelez-nous	-
19	2162717		Pan, Crisper		Appelez-nous	-
20	2162716		Pan, Meat		Appelez-nous	-
21	1116512		Crisper Gasket, Front (2)		Appelez-nous	-
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
23	1106612		Shelf Stud (2)				$ 7.56
24	1106822		Shelf, Freezer (top)		Appelez-nous	-
25	2148537		Trim, Shelf		Appelez-nous	-
26	1127416		Divider		Appelez-nous	-
27	1106624		Shelf, Ice Compartment		Appelez-nous	-
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP489478		Screw   (Replaces: 489242)				$ 8.18
30	2148741		Door, Ice Compartment		Appelez-nous	-
31	1105653		Crisper Gasket, Rear (2)		Appelez-nous	-
32	2148524		Slide, Crisper		Appelez-nous	-
33	946355		Support, Stud		Appelez-nous	-
34	946356		Shelf Stud		Appelez-nous	-
35	W11625904		Pan, Utility   (Replaces: 2148742)				$ 67.83
36	2148816		Crisper Pan, Front		Appelez-nous	-
37	1107388		Egg Container, Top		Appelez-nous	-
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
38	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
38	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
38	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
38	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
38	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
38	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
38	1107384		Egg Container, Bottom		Appelez-nous	-
38	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
38	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
38	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
38	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
38	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
38	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	2155034		Door Reversal Instructions		Appelez-nous	-
38	350942		Primer White (13 Oz. Spray Can)				$ 94.14
38	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
38	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
38	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
38	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
38	833938		Kit, Terminal Connector				$ 8.47
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT2162812		Energy Guide		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	1129316		Eckmf90			Immediately	$ 149.11
	1117510		Torx Key				$ 5.84
	LIT2160152		Care & Use Guide		Appelez-nous	-
	LIT2169381		Service & Wiring Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
