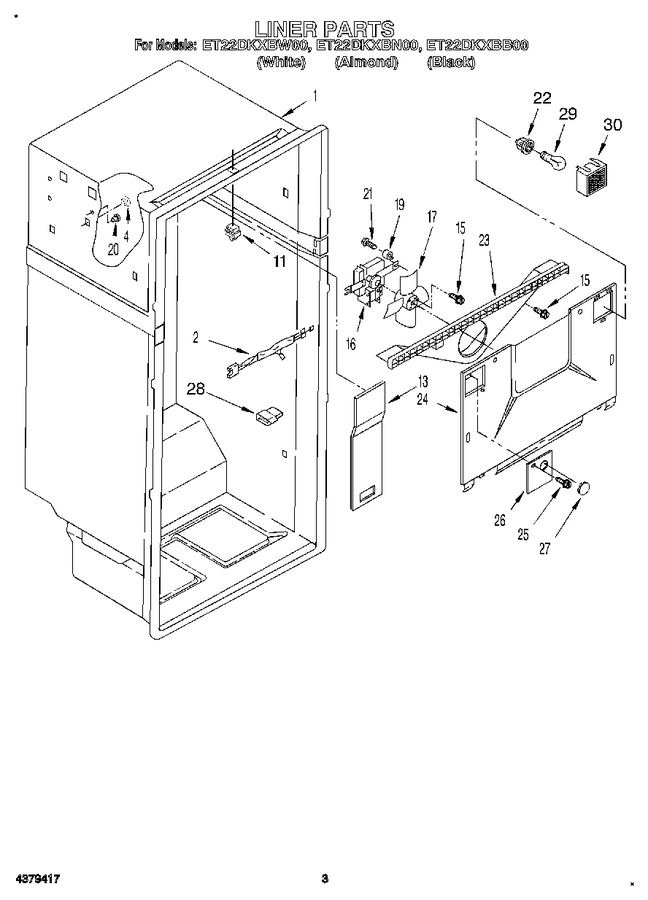

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 1127626 | Wiring, Fan Motor |
|
- | |||||
| 4 | WP941839 | Hole Plug (3) (Replaces: 941839) |
|
$ 8.03 | |||||
| 11 | W11384469 | Switch, Rocker Arm (Replaces: 1108112) |
|
Immediately | $ 39.09 | ||||
| 13 | 2157411 | Cover, Air Duct |
|
- | |||||
| 15 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 16 | 482731 | Motor, Fan (Replaces: 2169116) |
|
Immediately | $ 79.05 | ||||
| 17 | WP1100938 | Blade, Fan (Replaces: 2162448) |
|
$ 92.26 | |||||
| 19 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 20 | 1110779 | Grommet (4) |
|
- | |||||
| 21 | 489168 | Screw |
|
- | |||||
| 22 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 106.16 | |||||
| 23 | 2160644 | Scroll, Fan |
|
- | |||||
| 24 | 2157427 | Evaporator Cover |
|
- | |||||
| 25 | WP488729 | Screw (Replaces: 489196) |
|
Immediately | $ 8.28 | ||||
| 26 | WP2217784 | Hole Cover, Evaporator (Replaces: 944759) |
|
$ 47.22 | |||||
| 27 | 1103725 | Hole Plug |
|
- | |||||
| 28 | 934326 | Housing Plug |
|
- | |||||
| 29 | W11679940 | Light Bulb (Replaces: 946059) |
|
Immediately | $ 11.30 | ||||
| 30 | 981365 | Light Lens |
|
- |
