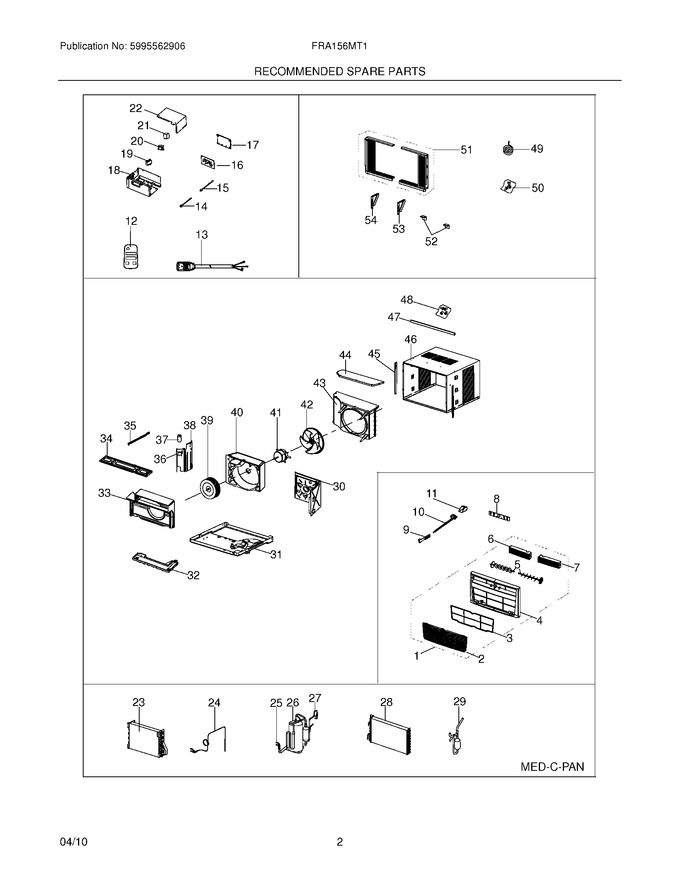

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304476952 | Front Assembly,complete Panel |
|
- | |||||
| 2 | 5304476943 | Panel,front Grille ,tilt-out |
|
- | |||||
| 3 | 5304476944 | Filter,air |
|
- | |||||
| 4 | 5304476953 | Panel,frame ,front |
|
- | |||||
| 5 | 5304476946 | Louver,vertical |
|
- | |||||
| 6 | 5304476948 | Louver,horizontal ,left |
|
- | |||||
| 7 | 5304476947 | Louver,horizontal ,right |
|
- | |||||
| 10 | 5304476950 | Door,vent Control ,with Lever |
|
- | |||||
| 17 | 5304476251 | Holder,mounting Plate ,control |
|
- | |||||
| 18 | 5304476361 | Control Box |
|
- | |||||
| 22 | 5304476314 | Cover,control Box |
|
- | |||||
| 30 | 5304472538 | Bulkhead,partition ,front Right |
|
- | |||||
| 31 | 5304476368 | Base,unit Chassis |
|
- | |||||
| 32 | 5304472530 | Tray,drip Pan |
|
- | |||||
| 33 | 5304476369 | Scroll,blower Housing ,front |
|
- | |||||
| 34 | 5304476326 | Cover,blower Scroll ,front |
|
- | |||||
| 35 | 5304476327 | Bracket,connecting |
|
- | |||||
| 36 | 5304476370 | Strap,capacitor Clamp |
|
- | |||||
| 38 | 5304476371 | Bulkhead,partition ,front/left |
|
- | |||||
| 40 | 5304476372 | Scroll,blower Housing ,rear |
|
- | |||||
| 43 | 5304476329 | Shroud,condenser Fan |
|
- | |||||
| 44 | 5304476330 | Cover,condenser Fan ,rear |
|
- | |||||
| 45 | 5304476331 | Retainer,shutter ,cabinet Sides |
|
- | |||||
| 46 | 5304476332 | Cabinet,wrapper/sleeve |
|
- | |||||
| 47 | 5304476333 | Rail,shutter Track ,top Angle |
|
- | |||||
| 48 | 5304472546 | Screw Kit,top Rail Mount |
|
- | |||||
| 49 | 5304472548 | Seal Kit,foam ,top,bottom,sash |
|
- | |||||
| 50 | 5304476266 | Hardware,mounting ,screws/locks |
|
- | |||||
| 51 | 5304476334 | Window Filler Kit,slider Panel |
|
- | |||||
| 52 | 5304472360 | Bracket,sill Angle |
|
- | |||||
| 53 | 5304476268 | Bracket,mounting ,right ,window |
|
- | |||||
| 54 | 5304476269 | Bracket,mounting ,left ,window |
|
- | |||||
| F11 | 5304529409 | Link,lever/vent Door ,detente (Replaces: 5304476359) |
|
- | |||||
| F12 | 5304501878 | Remote Control,transmitter (Replaces: 5304476851) |
|
$ 102.58 | |||||
| F13 | 5304476180 | Power Cord,electric ,lcdi |
|
$ 211.10 | |||||
| F14 | 5304512375 | Thermistor,evaporator ,sensor (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F15 | 5304471276 | Thermistor,temp Sensor ,indoor |
|
$ 33.88 | |||||
| F16 | 5304476951 | Pc Board,control ,main |
|
- | |||||
| F19 | 5304471221 | Capacitor,fan Motor |
|
- | |||||
| F20 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F21 | 5304472559 | Ionizer,anion Generator |
|
- | |||||
| F23 | 5304476362 | Evaporator,with Cap Tube |
|
- | |||||
| F24 | 5304476363 | Tube,capillary |
|
- | |||||
| F25 | 5304476364 | Tube,suction |
|
- | |||||
| F26 | 5304475730 | Compressor |
|
$ 891.24 | |||||
| F27 | 5304476365 | Tube,discharge |
|
- | |||||
| F28 | 5304476366 | Condenser |
|
- | |||||
| F29 | 5304476367 | Drier-filter |
|
$ 45.55 | |||||
| F37 | 5304474928 | ยท Capacitor,compressor |
|
- | |||||
| F39 | 5304472532 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F41 | 5304472539 | Motor,fan |
|
- | |||||
| F42 | 5304538708 | Fan Blade,axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| F8 | 5304476954 | Pc Board,display/input |
|
- | |||||
| F9 | 5304476243 | Handle,vent Control |
|
- |
