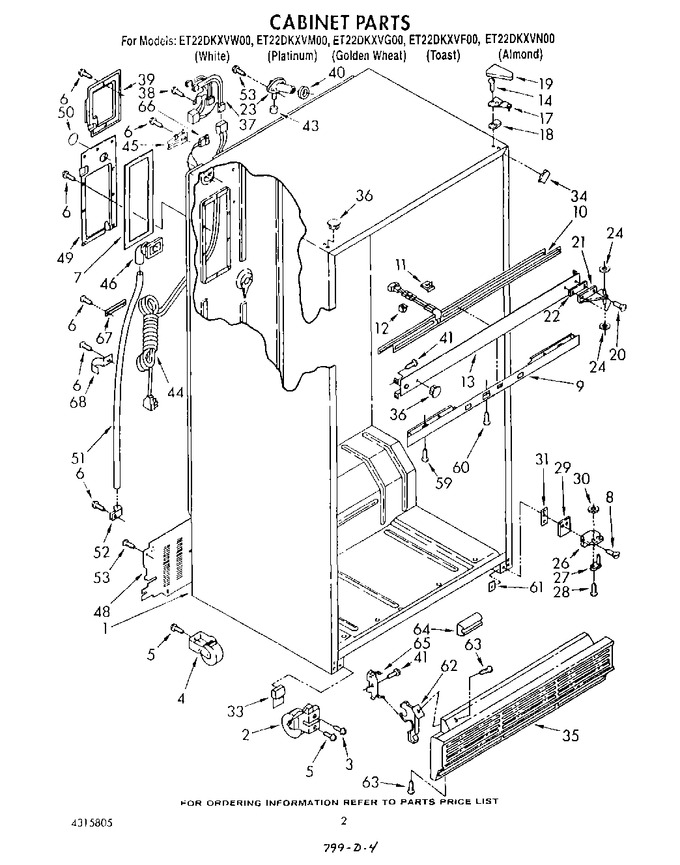

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981128		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
6	WP489478		Screw   (Replaces: 489242)				$ 8.18
7	1114548		Sealing Gasket		Appelez-nous	-
8	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
8	488949		Screw (repair)		Appelez-nous	-
9	1124219		Control, Front Cover		Appelez-nous	-
10	1105433		Heater, Mullion		Appelez-nous	-
11	1106779		Clip, Mullion (3)		Appelez-nous	-
12	940024		Spacer (2)		Appelez-nous	-
13	1105424		Center Rail (white)		Appelez-nous	-
13	1105426		Center Rail (golden Harvest)		Appelez-nous	-
13	1105427		Center Rail (almond)		Appelez-nous	-
13	1105428		Center Rail (toast)		Appelez-nous	-
13	1105429		Center Rail (platinum)		Appelez-nous	-
14	WP999367		Screw, 10-32 X 1/2   (Replaces: 489077)				$ 8.56
14	488949		Screw (repair)		Appelez-nous	-
17	1123514		Hinge, Top		Appelez-nous	-
18	1123515		Shim, Hinge Top				$ 6.58
19	1100172		Hinge Cover (toast)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
19	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
19	1100173		Hinge Cover (platinum)		Appelez-nous	-
20	488949		Screw (repair)		Appelez-nous	-
20	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
21	836153		Hinge, Center		Appelez-nous	-
22	836195		Shim, Center (repair)		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
24	WP488296		Washer, 11/64   (Replaces: 488296)			Immediately	$ 7.55
26	1115908		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	489218		Screw		Appelez-nous	-
29	836196		Shim, Bottom		Appelez-nous	-
30	489200		Washer, 7/32				$ 7.75
31	1105474		Spacer, Hinge		Appelez-nous	-
33	1106808		Corner Filler, Grille		Appelez-nous	-
34	1110710		Filler, Wrap Corner (golden Harvest)		Appelez-nous	-
34	1110712		Filler, Wrap Corner (platinum)		Appelez-nous	-
34	1110709		Filler, Wrap Corner (almond)		Appelez-nous	-
34	1110708		Filler, Wrap Corner (white)		Appelez-nous	-
34	1110711		Filler, Wrap Corner (toast)		Appelez-nous	-
35	1106806		Grille		Appelez-nous	-
36	1100177		Hole Plug (5) (platinum)		Appelez-nous	-
36	842031		Hole Plug (5) (white)		Appelez-nous	-
36	989195		Hole Plug (5) (almond)		Appelez-nous	-
36	989876		Hole Plug (5) (golden Harvest)		Appelez-nous	-
36	1100176		Hole Plug (5) (toast)		Appelez-nous	-
37	1118813		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	1105606		Cover, Wiring		Appelez-nous	-
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
41	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
43	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	937062		Fitting, Drain		Appelez-nous	-
48	1105617		Cover, Unit		Appelez-nous	-
49	1105527		Cover, Plug		Appelez-nous	-
50	1120224		Hole Seal		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 516506)				$ 125.72
52	836077		Clamp		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
59	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488725)				$ 7.92
60	WP489174		Screw (2)   (Replaces: 489174)				$ 7.30
61	836162		Tap-plate, Bottom Hinge		Appelez-nous	-
62	WP944224		Support (2)   (Replaces: 944224)				$ 7.94
63	489173		Screw		Appelez-nous	-
64	546131		Bumper, Grille		Appelez-nous	-
65	989068		Clip, Grille Retainer (2)		Appelez-nous	-
66	934326		Housing Plug		Appelez-nous	-
67	1105607		Tube Clamp		Appelez-nous	-
68	1110564		Clamp		Appelez-nous	-
