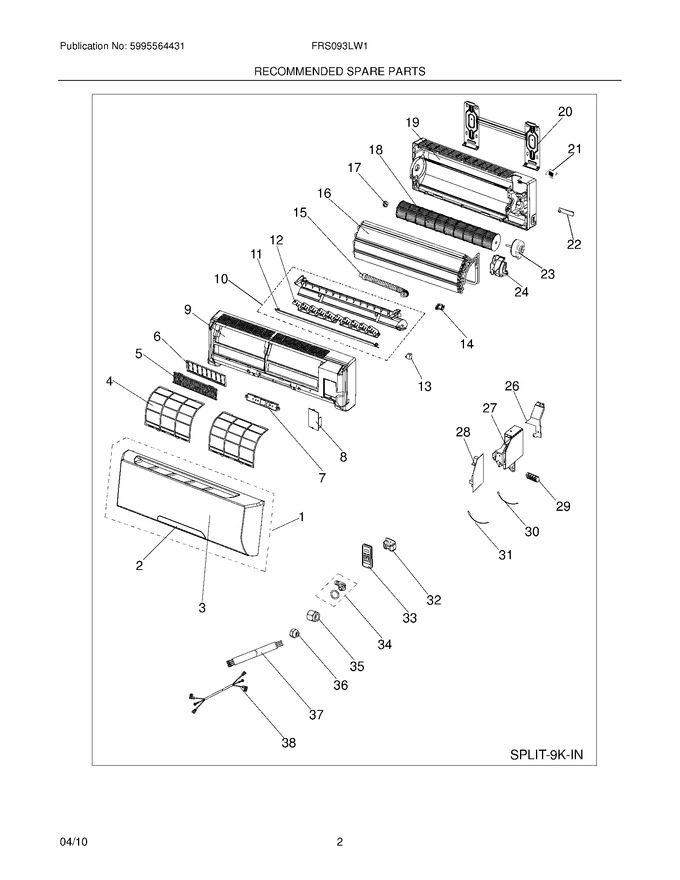

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304478097 | Front Panel Asembly |
|
- | |||||
| 2 | 5304478098 | Frame,display Board |
|
- | |||||
| 3 | 5304478099 | Panel,front |
|
- | |||||
| 4 | 5304478100 | Air Filter |
|
- | |||||
| 5 | 5304478101 | Cleaner,air |
|
- | |||||
| 6 | 5304478102 | Holder,air Cleaner |
|
- | |||||
| 7 | 5304478103 | Pc Board,display/input |
|
- | |||||
| 8 | 5304478104 | Cover,window |
|
- | |||||
| 9 | 5304478105 | Panel,frame ,front |
|
- | |||||
| 10 | 5304478106 | Louver Assembly |
|
- | |||||
| 11 | 5304478107 | Louver,horizontal |
|
- | |||||
| 12 | 5304478108 | Louver Assembly,vertical ,with Holder |
|
- | |||||
| 14 | 5304478110 | Bracket,thermostat ,mounting |
|
- | |||||
| 15 | 5304478111 | Hose,drain |
|
- | |||||
| 17 | 5304473990 | ยท Bearing Block,motor Shaft |
|
- | |||||
| 19 | 5304478114 | Cabinet,rear |
|
- | |||||
| 20 | 5304478115 | Bracket,installation |
|
- | |||||
| 21 | 5304478116 | Screw Kit,wall Mounting |
|
- | |||||
| 22 | 5304478117 | Clamp,pipe |
|
- | |||||
| 24 | 5304478119 | Housing,motor |
|
- | |||||
| 26 | 5304478191 | Cover,control Box |
|
- | |||||
| 27 | 5304478192 | Control Box |
|
- | |||||
| 32 | 5304478195 | Holder,remote |
|
- | |||||
| 34 | 5304478197 | Drain Kit |
|
- | |||||
| 35 | 5304478198 | Nut,copper |
|
- | |||||
| 36 | 5304478199 | Nut,copper ,liquid Tubing |
|
- | |||||
| 38 | 5304478201 | Power Cord,electric |
|
- | |||||
| F13 | 5304478109 | Motor,louver |
|
- | |||||
| F16 | 5304478112 | Evaporator |
|
- | |||||
| F18 | 5304478113 | Blower Wheel,cross Flow Fan,cross Flow Fan |
|
- | |||||
| F23 | 5304478118 | Motor,blower |
|
- | |||||
| F28 | 5304478193 | Pc Board,control ,indoor |
|
- | |||||
| F29 | 5304478194 | Terminal,connector ,wire |
|
- | |||||
| F30 | 5304476053 | Thermistor,temp Sensor ,indoor |
|
$ 28.93 | |||||
| F31 | 5304521225 | Thermistor,evap Sensor ,defrost (Replaces: 5304471275) |
|
- | |||||
| F33 | 5304478196 | Remote Control,transmitter |
|
- | |||||
| F37 | 5304478200 | Wiring Harness,indoor/outdoor |
|
$ 89.09 |
