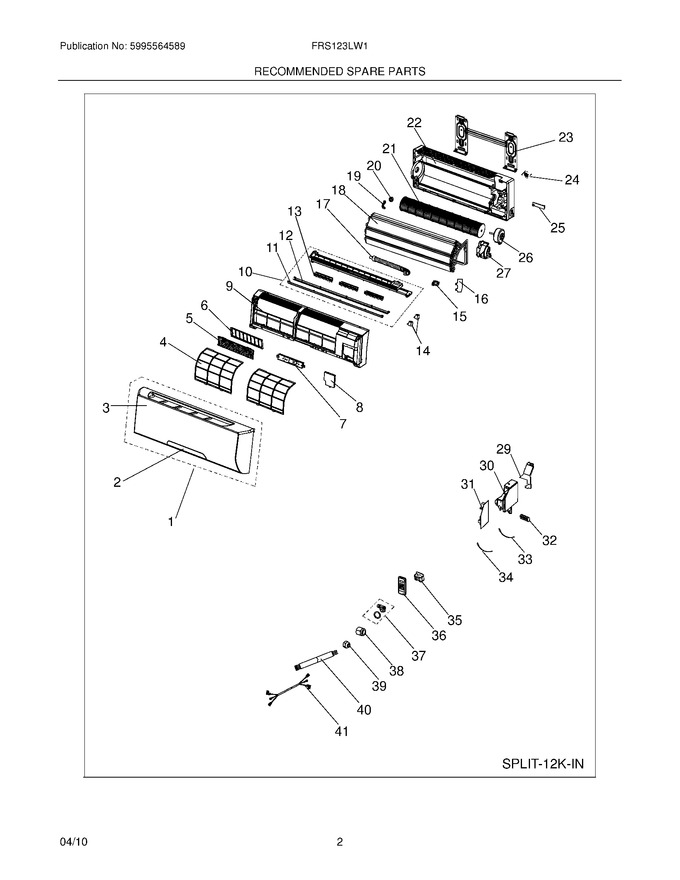

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304478202 | Front Assembly |
|
- | |||||
| 2 | 5304478203 | Frame,display Board |
|
- | |||||
| 3 | 5304478204 | Panel,front |
|
- | |||||
| 4 | 5304478205 | Filter,air |
|
- | |||||
| 5 | 5304478101 | Cleaner,air |
|
- | |||||
| 6 | 5304478102 | Holder,air Cleaner |
|
- | |||||
| 7 | 5304478206 | Pc Board,display/input |
|
- | |||||
| 8 | 5304478207 | Cover,window |
|
- | |||||
| 9 | 5304478208 | Panel,frame ,front |
|
- | |||||
| 10 | 5304478209 | Louver Assembly |
|
- | |||||
| 11 | 5304478210 | Louver,horizontal,upper,large,horizontal,upper ,large |
|
- | |||||
| 12 | 5304478211 | Louver.horizontal,lower,small,horizontal,lower ,small |
|
- | |||||
| 13 | 5304478212 | Louver Assembly,vertical ,with Holder |
|
- | |||||
| 14 | 5304478213 | Motor,louver |
|
- | |||||
| 15 | 5304478110 | Bracket,thermostat ,mounting |
|
- | |||||
| 16 | 5304478215 | Water Breaker,spill Trap |
|
- | |||||
| 17 | 5304478214 | Hose,drain |
|
- | |||||
| 19 | 5304478216 | Clip,bearing Block |
|
- | |||||
| 20 | 5304478217 | Bearing Block,motor Shaft |
|
- | |||||
| 21 | 5304478218 | Blower Wheel,cross Flow Fan |
|
- | |||||
| 22 | 5304478219 | Cabinet,rear |
|
- | |||||
| 23 | 5304478220 | Bracket,wall Mount |
|
- | |||||
| 24 | 5304478116 | Screw Kit,wall Mounting |
|
- | |||||
| 25 | 5304478117 | Clamp,pipe |
|
- | |||||
| 27 | 5304478222 | Housing,motor |
|
- | |||||
| 29 | 5304478223 | Cover,control Box |
|
- | |||||
| 30 | 5304478224 | Control Box |
|
- | |||||
| 35 | 5304478195 | Holder,remote |
|
- | |||||
| 37 | 5304478197 | Drain Kit |
|
- | |||||
| 38 | 5304478226 | Nut,copper ,gas Tubing |
|
- | |||||
| 39 | 5304478199 | Nut,copper ,liquid Tubing |
|
- | |||||
| 41 | 5304478201 | Power Cord,electric |
|
- | |||||
| F18 | 5304478112 | Evaporator |
|
- | |||||
| F26 | 5304478221 | Motor,blower |
|
- | |||||
| F31 | 5304478225 | Pc Board,control ,indoor |
|
- | |||||
| F32 | 5304478194 | Terminal,connector ,wire |
|
- | |||||
| F33 | 5304476053 | Thermistor,temp Sensor ,indoor |
|
$ 28.93 | |||||
| F34 | 5304521225 | Thermistor,evap Sensor ,defrost (Replaces: 5304471275) |
|
- | |||||
| F36 | 5304478196 | Remote Control,transmitter |
|
- | |||||
| F40 | 5304478200 | Wiring Harness,indoor/outdoor |
|
$ 89.09 |
