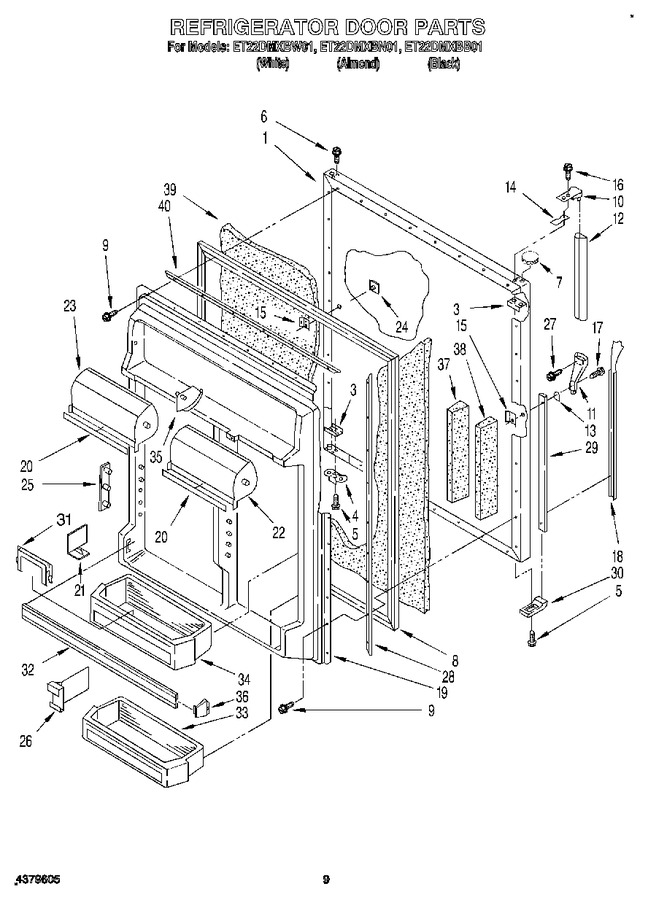

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1122549		Refrigerator Door Panel (also Order Item 39) (white)		Appelez-nous	-
1	2161866		Refrigerator Door Panel (also Order Item 39) (black)		Appelez-nous	-
1	1122658		Refrigerator Door Panel (also Order Item 39) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop (chrome)		Appelez-nous	-
4	1115910		Bracket Door Stop (black)		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2170598		Door Gasket, Magnetic (black Model)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic (almond Model)   (Replaces: 1122828)				$ 284.09
8	2188450A		Door Gasket, Magnetic (whitemodel)   (Replaces: 2148565)				$ 284.09
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP488729		(8)   (Replaces: 489287)			Immediately	$ 8.28
9	WP489069		Screw ((20))   (Replaces: 489101)			Immediately	$ 8.40
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	1120781		Handle, Center (black)		Appelez-nous	-
12	943068		Handle Center (almond)		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	1120830		Insert, Handle (black)		Appelez-nous	-
18	2150153		Insert, Handle (white)		Appelez-nous	-
18	2150154		Insert, Handle (almond)		Appelez-nous	-
19	2156245		Interior Door Panel		Appelez-nous	-
20	2164839		Trim, Door Compartment		Appelez-nous	-
21	2160050		Divider, Door Shelf		Appelez-nous	-
22	2148807		Compartment Door, Right Side		Appelez-nous	-
23	2148809		Compartment Door, Left Side		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189009		Hole Plug, Handle (black)   (Replaces: 2160809)				$ 7.61
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
25	1116986		Pin Plate				$ 12.10
26	2152335		Divider, Bin		Appelez-nous	-
27	489022		Screw, 6-20 X 3/8		Appelez-nous	-
28	1122551		Retainer, Gasket		Appelez-nous	-
29	935871		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	2163566		Retainer, Bottle		Appelez-nous	-
32	2162841		Trim, Door Shelf		Appelez-nous	-
33	2162894		Bin, Door Shelf (2)		Appelez-nous	-
34	2162895		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	1122711		Door Dike, Center		Appelez-nous	-
38	1122709		Door Dike, Side (2)		Appelez-nous	-
39	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
40	1122552		Retainer, Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
