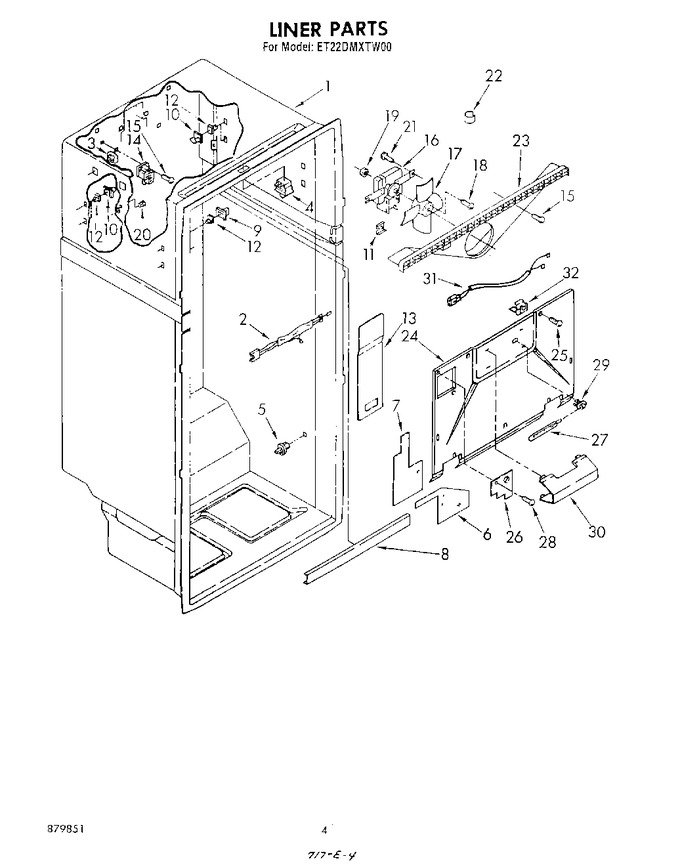

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1105679		Wiring, Fan Motor		Appelez-nous	-
3	944795		Hole Plug (2)		Appelez-nous	-
4	W11384469		Switch, Rocker Arm   (Replaces: 549702)			Immediately	$ 39.09
5	1118066		Stud (2)		Appelez-nous	-
6	1106829		Electrical, Shield		Appelez-nous	-
7	1106696		Electrical Shield		Appelez-nous	-
8	1106892		Electrical, Shield		Appelez-nous	-
9	946356		Stud (2)		Appelez-nous	-
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
10	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
11	1105678		Screw, Anchor		Appelez-nous	-
12	946355		Support Stud (8)		Appelez-nous	-
13	1105447		Cover, Air Duct		Appelez-nous	-
14	942842		Terminal Block, Multiple		Appelez-nous	-
15	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.72
16	482731		Motor, Fan   (Replaces: 1105608)			Immediately	$ 79.05
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	1114354		Grommet (2)		Appelez-nous	-
20	1110779		Grommet, (6)		Appelez-nous	-
21	489168		Screw		Appelez-nous	-
22	1110565		Ground Spacer		Appelez-nous	-
23	1105517		Scroll, Fan		Appelez-nous	-
24	1118709		Evaporator Cover		Appelez-nous	-
25	489147		Screw, 8-15 X 1/2 (4)		Appelez-nous	-
26	WP2217784		Hole Cover, Evaporator   (Replaces: 944760)				$ 47.22
27	WP548049		Light Bulb   (Replaces: 547225)				$ 90.67
28	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
29	1112613		Light, Socket		Appelez-nous	-
30	1119677		Light Lens		Appelez-nous	-
31	1118672		Wiring Harness, Frezzer Light		Appelez-nous	-
32	1119734		Clip (2)				$ 34.53
