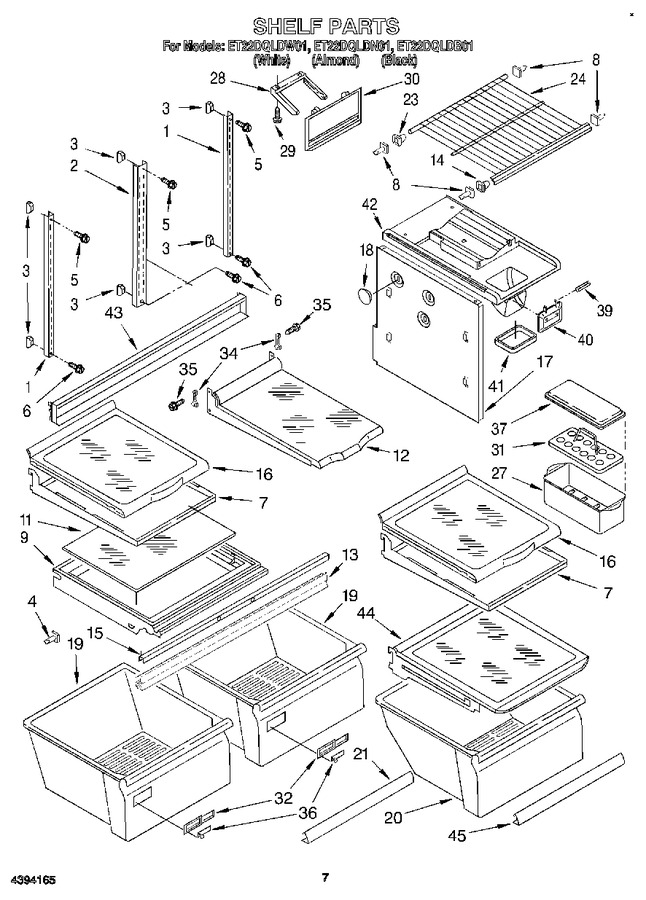

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1114466 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 1114465 | Shelf, Ladder Center |
|
- | |||||
| 3 | 520965 | Screw, Support (6) |
|
$ 31.35 | |||||
| 4 | 1106612 | Shelf Stud (2) |
|
$ 7.56 | |||||
| 5 | 489345 | Screw, 8-32 X 1-1/4 |
|
- | |||||
| 6 | WP489474 | Screw, 8 X 1-1/4 (Replaces: 489474) |
|
Immediately | $ 8.55 | ||||
| 7 | 2174036 | Shelf, Cantilever (2) |
|
- | |||||
| 8 | 946355 | Support, Stud |
|
- | |||||
| 9 | 2179420 | Crisper Cover |
|
- | |||||
| 11 | 2174143 | Glass, Crisper Cover |
|
- | |||||
| 12 | 2174224 | Shelf, Slide (side To Side) |
|
- | |||||
| 13 | 2179392 | Gasket, Crisper Cover |
|
- | |||||
| 14 | 946356 | Shelf Stud |
|
- | |||||
| 15 | WP2172748 | Support, Crisper (Replaces: 2172748) |
|
$ 102.08 | |||||
| 16 | 2174035 | Shelf Assembly, Spillguard |
|
- | |||||
| 17 | 2160619 | Support Wall I/m |
|
- | |||||
| 18 | 2160621 | Anchor-screw I/m |
|
- | |||||
| 19 | 2179411 | Pan, Crisper |
|
- | |||||
| 20 | 2179412 | Pan, Meat |
|
- | |||||
| 21 | WP2179234 | Trim, Handle (Replaces: 2179239) |
|
$ 88.57 | |||||
| 23 | 819091 | Shelf Stud (2) (Replaces: 946358) |
|
$ 41.66 | |||||
| 24 | 2160695 | Shelf, Freezer (top) (2) |
|
- | |||||
| 27 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 19.54 | |||||
| 28 | 1115380 | Slide, Ice Compartment |
|
- | |||||
| 29 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 30 | 2171712 | Door, Ice Compartment (Replaces: 2173905) |
|
$ 69.91 | |||||
| 31 | WP2177817 | Carrier, Egg Bin (Replaces: 2164373) |
|
$ 18.78 | |||||
| 32 | WP2179343 | Front, Crisper Pan (Replaces: 2179343) |
|
$ 34.02 | |||||
| 34 | 2169608 | Hook, Shelf |
|
- | |||||
| 35 | 489419 | Screw |
|
- | |||||
| 36 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 30.60 | |||||
| 37 | 2169935 | Cover, Egg Bin |
|
- | |||||
| 39 | 489395 | Roll Pin |
|
- | |||||
| 40 | 2160613 | Door-platform |
|
- | |||||
| 41 | 2160615 | Gasket-platform |
|
- | |||||
| 42 | 2160612 | Platform-ice Container |
|
- | |||||
| 43 | 2169793 | Slide Track Assy., Shelf |
|
- | |||||
| 44 | 2174043 | Shelf, Meat Pan |
|
- | |||||
| 45 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 45 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| 45 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| 45 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 45 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 45 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 45 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 45 | 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | |||||
| 45 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 45 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 45 | WP2179243 | Trim, Handle (Replaces: 2179244) |
|
$ 109.65 | |||||
| 45 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 45 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 45 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| 45 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 45 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 45 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | |||||
| 45 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 45 | 2168575 | Door Removal Instructions |
|
- | |||||
| 45 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | |||||
| 45 | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| 45 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 45 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 45 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 45 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| LIT677971 | Do-it-yourself Manual, Icemaker |
|
- | ||||||
| LIT677969 | Do-it-yourself Manual Ref./fzr. |
|
- | ||||||
| LIT628370 | Modular Icemaker Service Sheet |
|
- | ||||||
| LIT2176903 | Service & Wiring Sheet |
|
- | ||||||
| LIT2173971 | Use & Care Guide |
|
- | ||||||
| LIT2182527 | Energy Guide |
|
- |
