SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


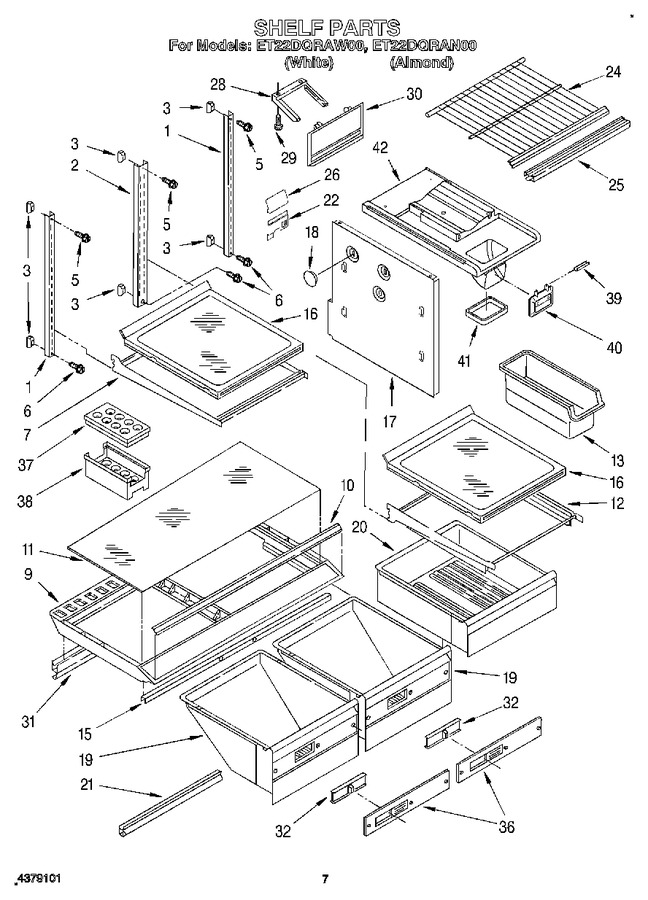

04 - Freezer Door


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Motor And Ice Container


09 - Dispenser Front


10 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	2160306		Shelf, Cantilever (2)		Appelez-nous	-
9	2148600		Crisper Cover		Appelez-nous	-
10	1119480		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	2166327		Shelf Assembly, Cantilever		Appelez-nous	-
13	WP982704		Container   (Replaces: 1127196)				$ 32.55
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	2160318		Shelf Assembly, Spillguard		Appelez-nous	-
17	2160619		Support Wall I/m		Appelez-nous	-
18	2160621		Anchor-screw I/m		Appelez-nous	-
19	2162717		Pan, Crisper		Appelez-nous	-
20	2162716		Pan, Meat		Appelez-nous	-
21	1116512		Crisper Gasket, Front (2)		Appelez-nous	-
22	2157452		Baffle-air, I/m		Appelez-nous	-
24	2160693		Shelf, Freezer (top) (2)		Appelez-nous	-
25	2160698		Trim, Shelf		Appelez-nous	-
26	2160729		Gasket, Baffle I/m		Appelez-nous	-
28	1115380		Slide, Ice Compartment		Appelez-nous	-
29	WP489478		Screw   (Replaces: 489242)				$ 8.18
30	2171712		Door, Ice Compartment   (Replaces: 2160659)				$ 69.91
31	1105653		Crisper Gasket, Rear (2)		Appelez-nous	-
32	2148524		Slide, Crisper		Appelez-nous	-
36	2148816		Crisper Pan, Front		Appelez-nous	-
37	1107388		Egg Container, Top		Appelez-nous	-
38	1107384		Egg Container, Bottom		Appelez-nous	-
39	489395		Roll Pin		Appelez-nous	-
40	2160613		Door-platform		Appelez-nous	-
41	2160615		Gasket-platform		Appelez-nous	-
42	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
42	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
42	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
42	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
42	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
42	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
42	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
42	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
42	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
42	2160612		Platform-ice Container		Appelez-nous	-
42	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
42	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
42	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
42	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
42	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
42	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
42	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
42	350942		Primer White (13 Oz. Spray Can)				$ 94.14
42	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
42	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
42	833938		Kit, Terminal Connector				$ 8.47
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2168563		Energy Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2168555		Care & Use Guide		Appelez-nous	-
	LIT2160736		Service & Wiring Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
