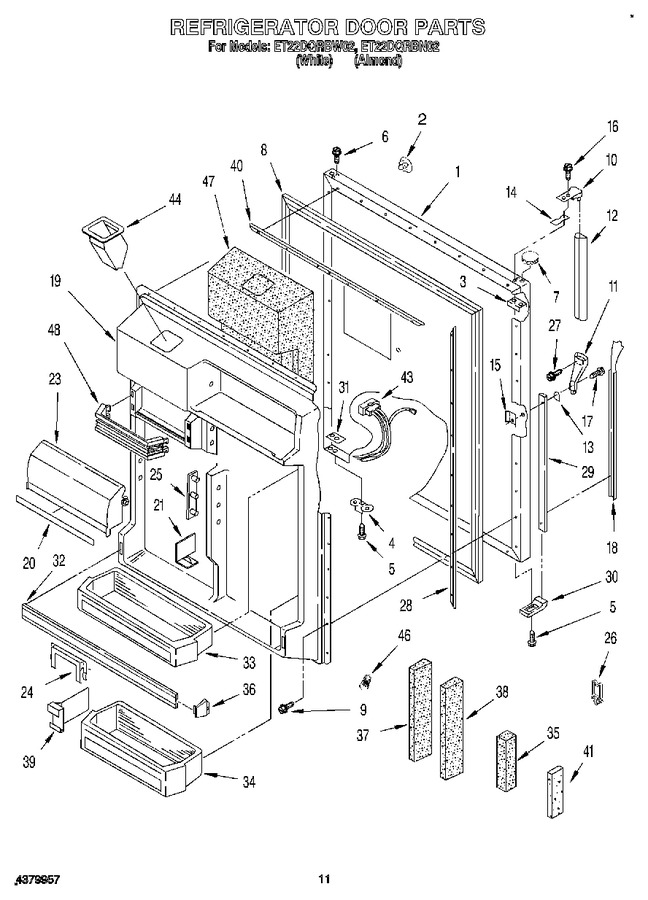

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2169039		Panel, Refrigerator Door (includes Insulation) (white)		Appelez-nous	-
1	2169040		Panel, Refrigerator Door (includes Insulation) (almond)		Appelez-nous	-
2	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
2	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
3	943185		Plate, Tap (2)		Appelez-nous	-
4	2155332		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188450A		Door Gasket, Magnetic (almond Model)   (Replaces: 1122828)				$ 284.09
8	2188450A		Door Gasket, Magnetic (whitemodel)   (Replaces: 2148565)				$ 284.09
9	WP489442		Screw, 7 X 1/2 (28)   (Replaces: 489442)			Immediately	$ 11.49
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
12	943068		Handle Center (almond)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw, Anchor   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	2150153		Insert, Handle (white)		Appelez-nous	-
18	2150154		Insert, Handle (almond)		Appelez-nous	-
19	2177314		Interior Door Panel		Appelez-nous	-
20	2162896		Trim, Door Compartment		Appelez-nous	-
21	2160050		Divider, Door Shelf		Appelez-nous	-
23	2148289		Compartment Door Left Side		Appelez-nous	-
24	2163566		Retainer, Bottle		Appelez-nous	-
25	1116986		Pin Plate (4)				$ 12.10
25	1118048		Pin Plate (2)		Appelez-nous	-
26	2168567		Clip		Appelez-nous	-
27	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
28	1122551		Retainer, Gasket		Appelez-nous	-
29	935871		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	2155335		Tap, Plate		Appelez-nous	-
32	2162841		Trim, Door Shelf		Appelez-nous	-
33	2162889		Bin, Door Shelf		Appelez-nous	-
34	2162895		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	1122710		Side Door Dike		Appelez-nous	-
36	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.90
37	1122712		Door Dike, Center		Appelez-nous	-
38	1122709		Door Dike, Side (2)		Appelez-nous	-
39	2152335		Divider, Bin		Appelez-nous	-
40	1122552		Retainer, Gasket		Appelez-nous	-
41	2168583		Support, Pin Plate		Appelez-nous	-
43	2174771		Plug, Crossover		Appelez-nous	-
44	2160684		Ice Chute		Appelez-nous	-
46	227991		Connector Wire		Appelez-nous	-
47	2160683		Insulation, Dispenser		Appelez-nous	-
48	2170851		Trim-door Shelf		Appelez-nous	-
