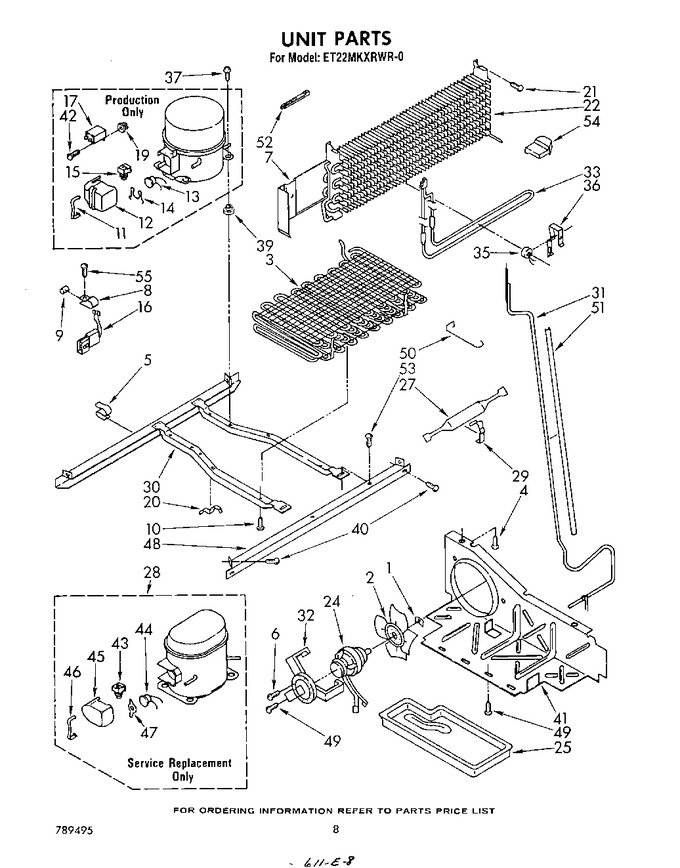

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	989524		Fan, Blade		Appelez-nous	-
3	1105640		Condenser Assembly		Appelez-nous	-
4	489050		Screw				$ 692.56
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	1105545		Heat Shield Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
10	WP488729		Screw, 8-15 X 1/2 (4)   (Replaces: 488992)			Immediately	$ 8.28
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	1105696		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
15	1101014		Relay		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
17	WPW10662129		Running Capacitor   (Replaces: 1100804)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
22	1103846		Evaporator		Appelez-nous	-
24	1105656		Motor, Fan			Immediately	$ 6.41
25	1105524		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 57.13
28	482614		Compressor (includes Items 43, 44, 45, 46, & 47) (also Order 876765 Tube Kit)		Appelez-nous	-
29	548508		Clamp, Drier		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 1105535)				$ 244.68
31	1105636		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	1105551		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bi-metal, Defrost   (Replaces: 1108575)				$ 126.90
36	1106913		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1108038)				$ 7.79
40	489340		Screw   (Replaces: 488683)		Appelez-nous	-
41	1105530		Baffle, Air		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	989509		Relay		Appelez-nous	-
44	753526		Overload		Appelez-nous	-
45	549505		Cover		Appelez-nous	-
46	549342		Strap		Appelez-nous	-
47	549086		Overload Spring		Appelez-nous	-
48	1105525		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105614		Guard, Fan		Appelez-nous	-
51	1108690		Sleeve		Appelez-nous	-
52	851095		Strap		Appelez-nous	-
53	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
54	1105632		Wedge, Air Baffle		Appelez-nous	-
55	876764		Valve, Access(3/16``)			Immediately	$ 95.92
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	978030		Valve, Access (3/4``)				$ 137.25
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
55	978026		Valve, Access (5/16``)			Immediately	$ 134.49
