SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional

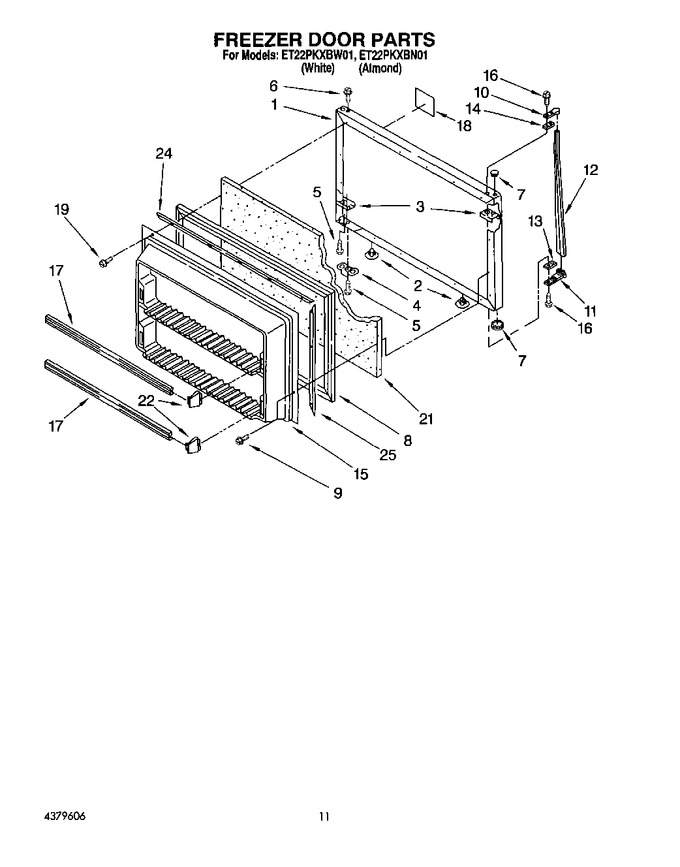

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159163		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	2159160		Freezer Door Panel (also Order Item 21) (white)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2188460A		Door Gasket Magnetic   (Replaces: 1122831)				$ 231.51
9	WP489069		Screw ((12))   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	WP2191882		Handle End, Top   (Replaces: 943184)				$ 62.77
11	2148503		Handle End		Appelez-nous	-
12	2159623		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2159624)			Immediately	$ 157.62
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1122575		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.98
17	2170592		Trim, Door Shelf (2)		Appelez-nous	-
18	2162781		Nameplate (white)		Appelez-nous	-
18	2162782		Nameplate (almond)		Appelez-nous	-
19	WP488729		Screw ((8))   (Replaces: 489287)			Immediately	$ 8.28
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90
24	1122552		Retainer, Gasket		Appelez-nous	-
25	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
25	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
25	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
25	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
25	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
25	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
25	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
25	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
25	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
25	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
25	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
25	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
25	2172761		Door Reversal Instructions		Appelez-nous	-
25	350942		Primer White (13 Oz. Spray Can)				$ 94.14
25	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
25	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
25	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
25	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
25	833938		Kit, Terminal Connector				$ 8.47
25	1122553		Retainer, Gasket		Appelez-nous	-
25	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
25	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
25	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
25	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
25	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2169122		Service & Wiring Sheet		Appelez-nous	-
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
	1117510		Torx Key				$ 5.84
	LIT2170979		Energy Guide		Appelez-nous	-
	LIT2170723		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
