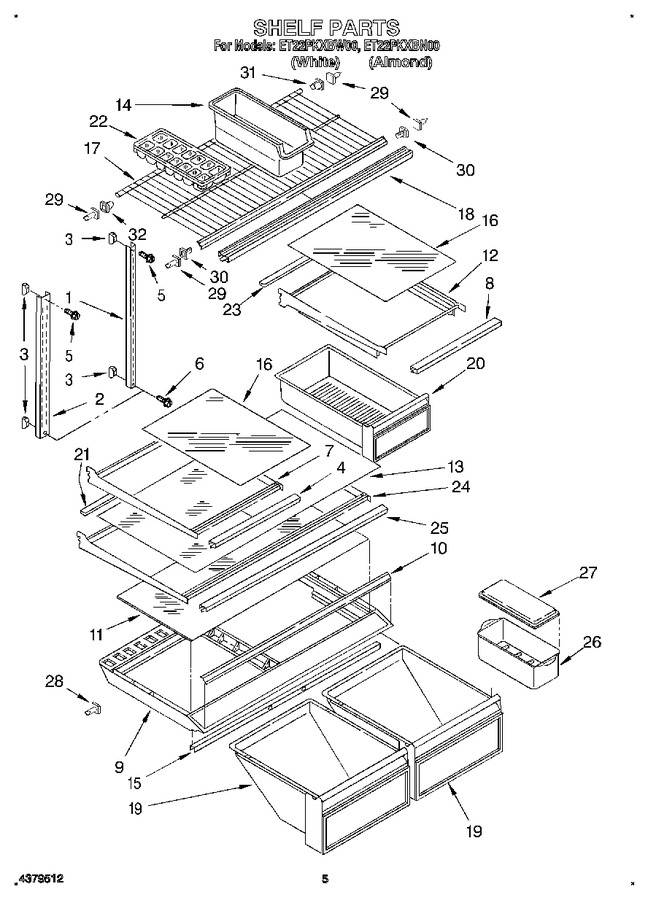

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	2162943		Reflector, Shelf		Appelez-nous	-
5	489345		Screw,		Appelez-nous	-
6	WP488163		Screw,   (Replaces: 488163)				$ 7.92
7	1110739		Shelf, Cantilever		Appelez-nous	-
8	2162941		Trim, Shelf		Appelez-nous	-
9	2170654		Crisper Cover		Appelez-nous	-
10	2170833		Trim, Crisper Cover		Appelez-nous	-
11	1106929		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
13	1114434		Glass Shelf		Appelez-nous	-
14	WP982704		Container   (Replaces: 1116917)				$ 32.55
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	1114474		Glass, Shelf		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	2162934		Trim, Shelf Front		Appelez-nous	-
19	2170935		Pan, Crisper		Appelez-nous	-
20	2170930		Pan, Meat		Appelez-nous	-
21	2163604		Reflector, Shelf		Appelez-nous	-
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
23	1110744		Retainer, Glass		Appelez-nous	-
24	1116350		Shelf, Full Cantilever		Appelez-nous	-
25	2170596		Trim, Shelf		Appelez-nous	-
26	W10136387A		Bin, Egg   (Replaces: 2170948)				$ 19.54
27	2170949		Cover, Bin		Appelez-nous	-
28	1106612		Shelf Stud				$ 7.56
29	946355		Stud, Support		Appelez-nous	-
30	946356		Stud, Front (2)		Appelez-nous	-
31	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
32	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
