SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

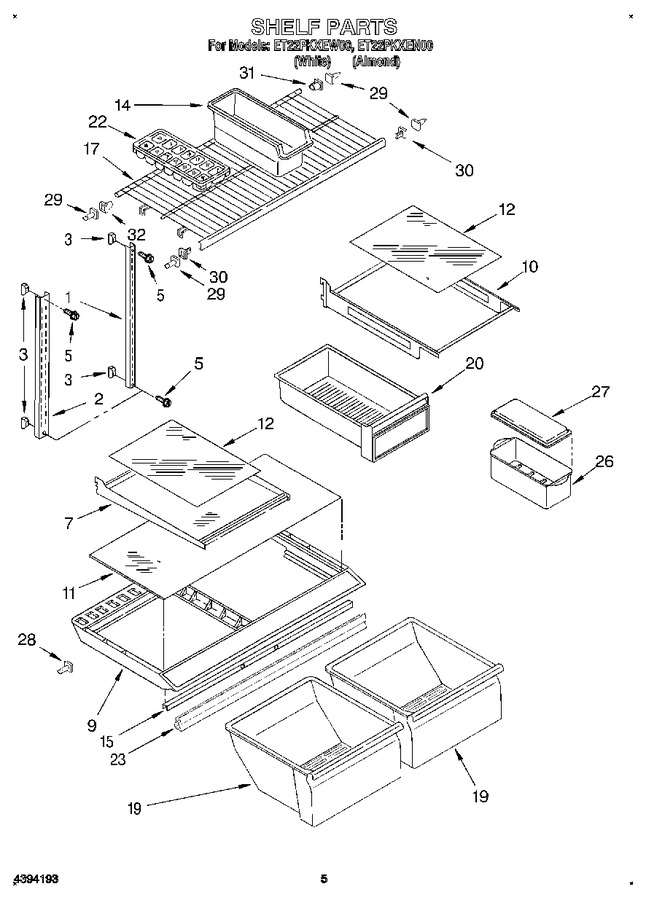

04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
5	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
7	2173421		Shelf, Cantilever		Appelez-nous	-
9	2179422		Crisper Cover		Appelez-nous	-
10	2179441		Shelf, Meat Pan		Appelez-nous	-
11	2174147		Glass, Crisper Cover		Appelez-nous	-
12	2173907		Shelf, Glass		Appelez-nous	-
14	WP982704		Container   (Replaces: 1116917)				$ 32.55
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
17	1125540		Shelf, Freezer		Appelez-nous	-
19	2179524		Pan, Crisper		Appelez-nous	-
20	2179525		Pan, Meat		Appelez-nous	-
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
23	2179392		Gasket, Crisper Cover		Appelez-nous	-
26	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
27	2169935		Cover, Bin		Appelez-nous	-
28	1106612		Shelf Stud				$ 7.56
29	946355		Stud, Support		Appelez-nous	-
30	946356		Stud, Front (2)		Appelez-nous	-
31	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
32	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66

    View Diagram in Separate Window       Print Part List
