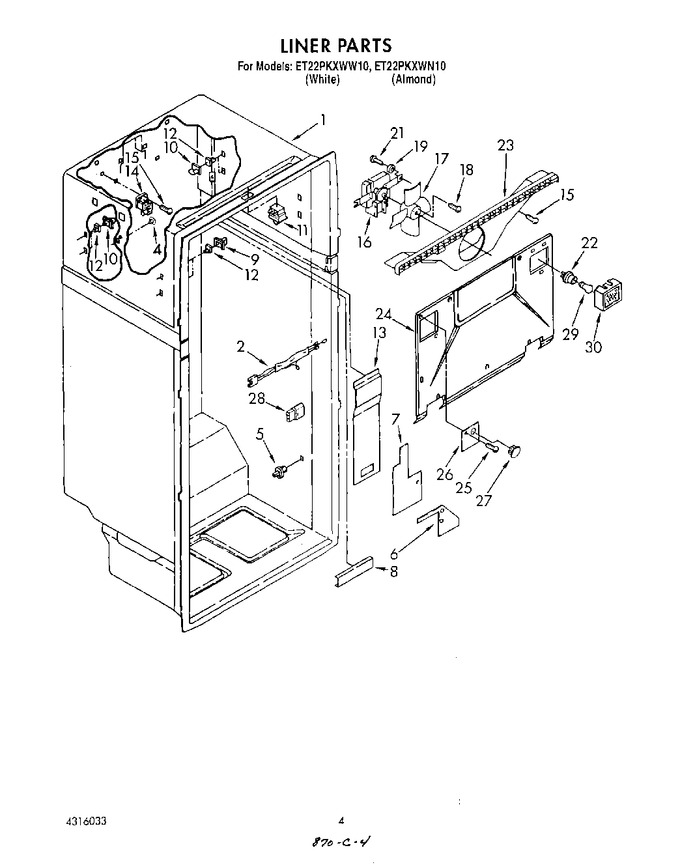

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1114721		Wiring, Fan Motor		Appelez-nous	-
4	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 8.03
5	1118066		Stud (2)		Appelez-nous	-
6	1106829		Electrical, Shield		Appelez-nous	-
7	1106696		Electrical Shield		Appelez-nous	-
8	1106892		Electrical, Shield		Appelez-nous	-
9	946356		Stud (3)		Appelez-nous	-
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
10	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
11	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
12	946355		Support, Stud (6)		Appelez-nous	-
13	1105447		Cover, Air Duct		Appelez-nous	-
14	942842		Terminal Block, Multiple		Appelez-nous	-
15	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	482731		Motor, Fan   (Replaces: 1105608)			Immediately	$ 79.05
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	531933		Grommet (2)				$ 5.70
21	489168		Screw		Appelez-nous	-
22	1123354		Socket, Light		Appelez-nous	-
23	1127100		Scroll, Fan		Appelez-nous	-
24	1127142		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw (5)   (Replaces: 489196)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1129070)				$ 47.22
27	1103725		Hole Plug		Appelez-nous	-
28	934326		Housing Plug		Appelez-nous	-
29	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
30	981365		Light Lens		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
