01 - Cabinet
02 - Liner
03 - Compartment Separator
04 - Shelf
05 - Unit
06 - Refrigerator Door
07 - Icemaker
08 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

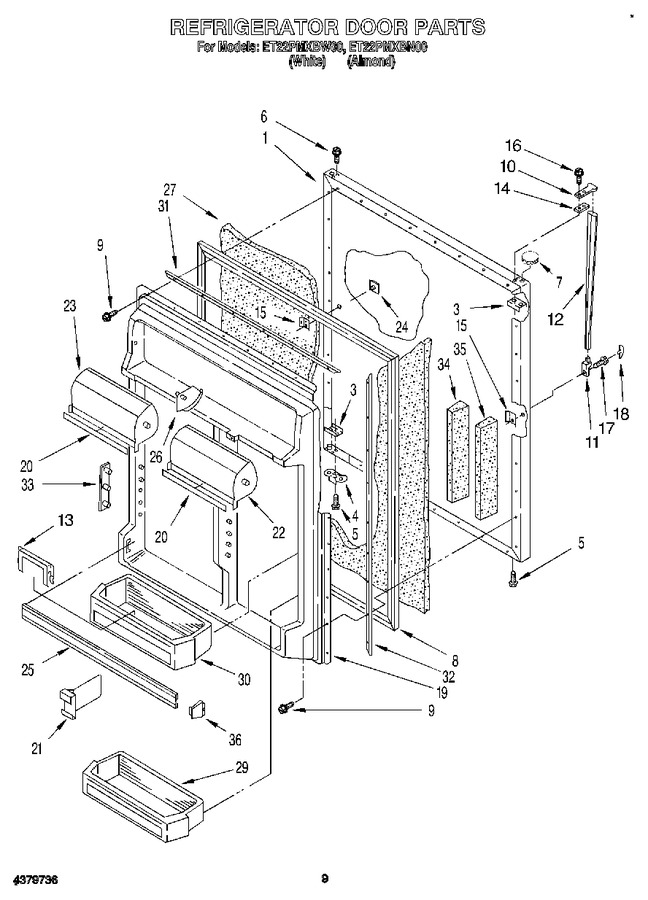

| 1 | 1122549 | Refrigerator Door Panel (also Order Item 27) (white) |
|
- | |||||
| 1 | 1122658 | Refrigerator Door Panel (also Order Item 27) (almond) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 1115910 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2188450A | Door Gasket, Magnetic (Replaces: 1122828) |
|
$ 284.09 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | 2148503 | Handle End |
|
- | |||||
| 11 | WP2183139 | Handle End Cap (Replaces: 1101632) |
|
Immediately | $ 51.98 | ||||
| 12 | 2148036 | Handle, Center (almond) |
|
- | |||||
| 12 | WP2162555 | Handle, Center (white) (Replaces: 2148035) |
|
Immediately | $ 157.62 | ||||
| 13 | 2163566 | Retainer, Bottle |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 2151669) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | WP1101634 | Screw Cover (Replaces: 981182) |
|
$ 9.68 | |||||
| 19 | 2156245 | Interior Door Panel |
|
- | |||||
| 20 | 2164839 | Trim, Door Compartment |
|
- | |||||
| 21 | 2152335 | Divider-door Bin |
|
- | |||||
| 22 | 2170943 | Compartment Door (r.s.) |
|
- | |||||
| 23 | 2170944 | Compartment Door (l.s.) |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 24 | 1122654 | Hole Plug, Handle (almond) |
|
- | |||||
| 25 | 2170588 | Trim, Door |
|
- | |||||
| 26 | WP1118001 | Hinge Pin, Center (Replaces: 1118001) |
|
$ 8.06 | |||||
| 27 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 29 | 2170616 | Shelf Bin (2) |
|
- | |||||
| 30 | 2170615 | Shelf Bin, Deep |
|
- | |||||
| 31 | 1122551 | Retainer, Gasket |
|
- | |||||
| 32 | 1122552 | Retainer, Gasket |
|
- | |||||
| 33 | 1116986 | Pin Plate |
|
$ 12.10 | |||||
| 34 | 1122711 | Reinforcement Dike-mid |
|
- | |||||
| 35 | 1122709 | Reinforcement Dike-side |
|
- | |||||
| 36 | 4386917 | End Cap, Trim (2) (Replaces: 1105685) |
|
Immediately | $ 18.90 |
