SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf

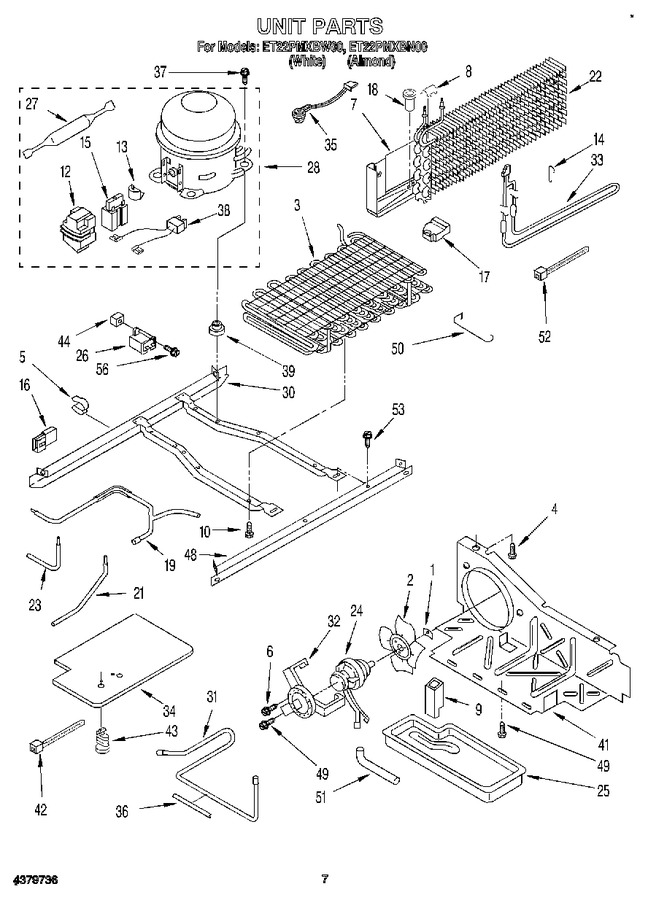

05 - Unit


06 - Refrigerator Door


07 - Icemaker


08 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	851732		Fan, Blade		Appelez-nous	-
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
8	9791833		Clip, Evaporator Tube		Appelez-nous	-
9	2176796		Insert, Air Baffle		Appelez-nous	-
10	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
12	WP2162358		Cover, Terminal   (Replaces: 2162358)				$ 95.29
13	4387535		Overload (production (includes Relay))   (Replaces: 2159596)				$ 191.05
13	4387535		Overload (service (includes Relay))   (Replaces: 2154760)				$ 191.05
14	851358		Support, Heater		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	2174770		Support, Evap. (l.s.)		Appelez-nous	-
17	2174769		Support, Evap. (r.s.)		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	2162475		Tube, Discharge		Appelez-nous	-
21	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
22	2153979		Evaporator		Appelez-nous	-
23	2154109		Tube, Process				$ 76.26
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2169137		Capacitor		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 57.13
28	876765		Tube Kit				$ 90.65
28	W10309990		Compressor (includes Items 12, 13, 15, 26, 27, 38 & 39) (also Order)   (Replaces: 2169426)			Immediately	$ 632.81
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
31	2162472		Tube, Suction		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
34	2160505		Cover, Unit Bottom		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 47.89
36	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 21.32
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.51
39	876811		Grommet   (Replaces: 1100826)				$ 7.79
41	2162457		Air Baffle		Appelez-nous	-
42	WPW10339879		Strap   (Replaces: 2165001)				$ 8.30
43	489396		Clip				$ 11.26
44	509812		Screw Grommet		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
50	1105612		Guard, Fan				$ 42.61
51	2154119		Drain Extension		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
56	876764		Valve, Access(3/16``)			Immediately	$ 95.92
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 137.25
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
56	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
56	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
