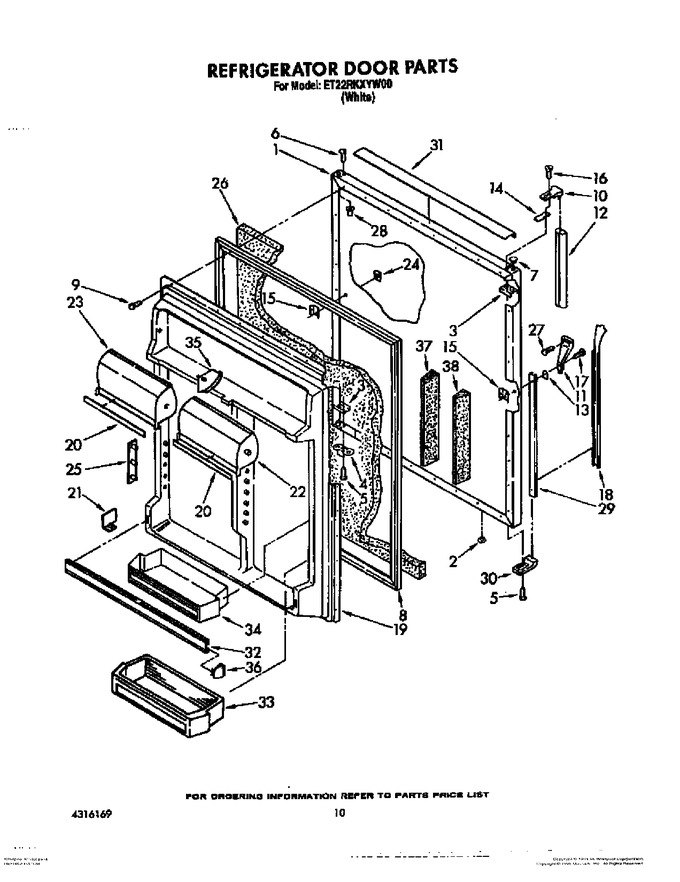

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105500		Panel, Refrigerator Door (also Order Item 26) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2188450A		Door Gasket, Magnetic   (Replaces: 1125887)				$ 284.09
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	2150150		Handle, Center		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	2150153		Insert, Handle		Appelez-nous	-
19	1124253		Interior Door Panel		Appelez-nous	-
20	1122750		Trim, Door Compartment		Appelez-nous	-
21	2152335		Divider, Door Shelf		Appelez-nous	-
22	2148807		Compartment Door, Right Side		Appelez-nous	-
23	2148809		Compartment Door, Left Side		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
25	1116986		Pin Plate (8)				$ 12.10
26	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
27	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
28	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
29	935871		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	1106148		Trim, Door		Appelez-nous	-
32	2148616		Trim, Door Shelf		Appelez-nous	-
33	2148549		Bin, Door Shelf (2)		Appelez-nous	-
34	2148550		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	1122711		Door Dike, Center		Appelez-nous	-
38	4210432		Trimless Black Decor Panel L.h.		Appelez-nous	-
38	1122709		Door Dike, Side (2)		Appelez-nous	-
38	819245		Black Handle Insert		Appelez-nous	-
38	819288		Trim Kit		Appelez-nous	-
38	819344		Black Decorpanel		Appelez-nous	-
38	4210431		Trimless Black Decor Panel R.h.		Appelez-nous	-
