02 - Cabinet


03 - Liner


04 - Compartment Separater


05 - Shelf, Optional


06 - Unit


07 - Refrigerator Door


08 - Icemaker


09 - Freezer Door

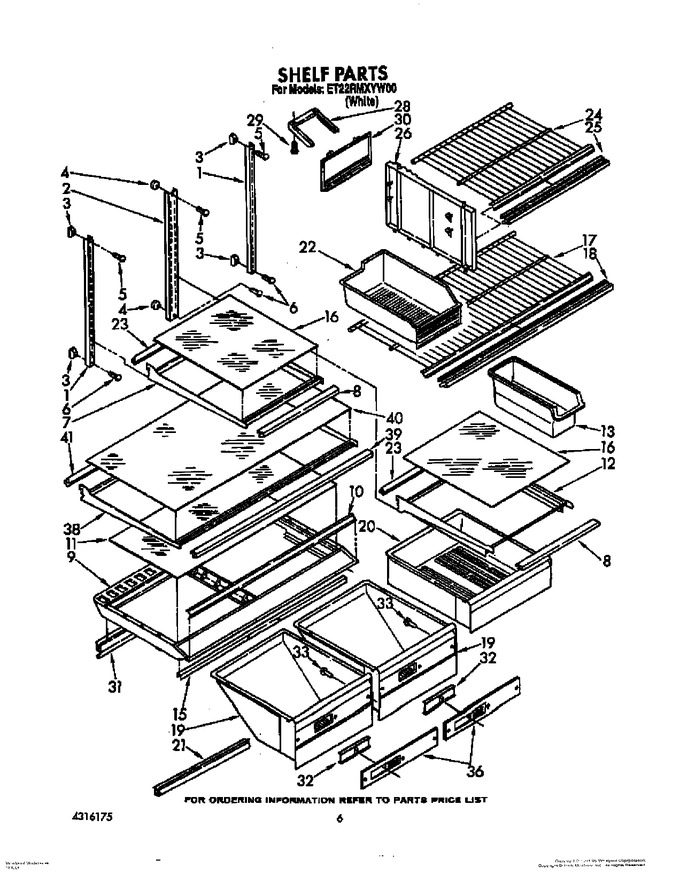

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1110739		Shelf, Cantilever (2)		Appelez-nous	-
8	2148526		Trim, Shelf		Appelez-nous	-
9	2148600		Crisper Cover		Appelez-nous	-
10	1119480		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
13	WP982704		Container   (Replaces: 1127196)				$ 32.55
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1124554		Glass, Shelf		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	2148535		Trim, Shelf Front		Appelez-nous	-
19	2148522		Pan, Crisper		Appelez-nous	-
20	2148530		Pan, Meat		Appelez-nous	-
21	1116512		Crisper Gasket, Front (2)		Appelez-nous	-
22	W11625904		Pan, Ice Cube   (Replaces: 2148659)				$ 67.83
23	1106768		Reflector, Shelf		Appelez-nous	-
24	1106822		Shelf, Freezer (top)		Appelez-nous	-
25	2148537		Trim, Shelf		Appelez-nous	-
26	1119650		Divider		Appelez-nous	-
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP489478		Screw   (Replaces: 489242)				$ 8.18
30	2148741		Door, Ice Compartment		Appelez-nous	-
31	1105653		Crisper Gasket, Rear (2)		Appelez-nous	-
32	2148524		Slide, Crisper		Appelez-nous	-
33	489268		Screw		Appelez-nous	-
36	2148523		Crisper, Pan Front		Appelez-nous	-
38	1116350		Shelf, Full Cantilever		Appelez-nous	-
39	2148528		Trim, Shelf		Appelez-nous	-
40	1124555		Glass, Full Shelf		Appelez-nous	-
41	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
41	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
41	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
41	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
41	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
41	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
41	1120818		Reflector, Shelf		Appelez-nous	-
41	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
41	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
41	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
41	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
41	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
41	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
41	799833		Kit, Evaporator Repair		Appelez-nous	-
41	833938		Kit, Terminal Connector				$ 8.47
41	515393		Transformer (115-230 Volt)		Appelez-nous	-
41	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
41	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
41	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
41	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 149.11
	LIT4316175		Parts List		Appelez-nous	-
	LIT2154424		Service & Wiring Sheet		Appelez-nous	-
	LIT1124256		Care & Use Guide		Appelez-nous	-
	LIT2148796		Energy Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
