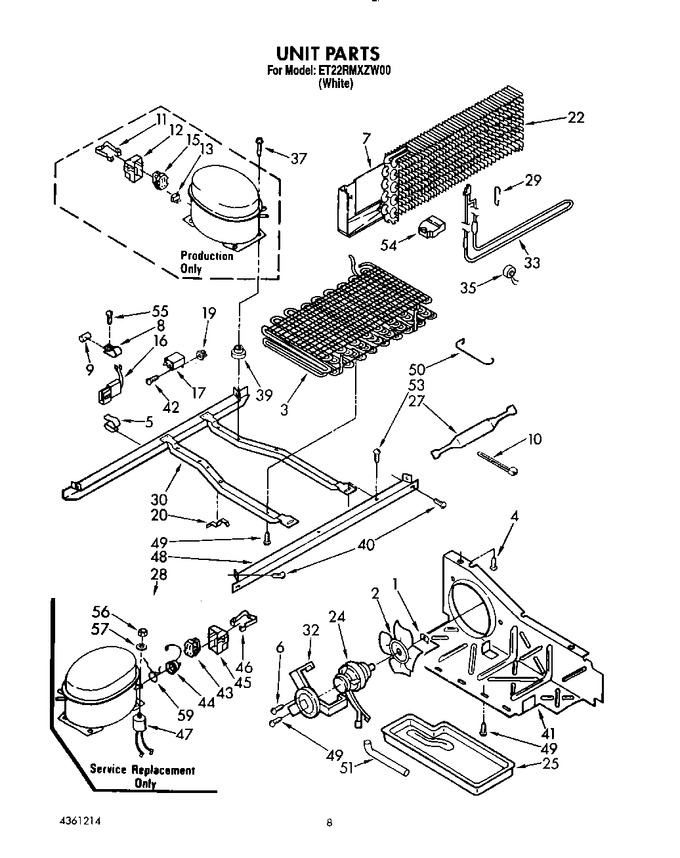

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	2149670		Dampener		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	2154140		Overload		Appelez-nous	-
15	2154436		Relay				$ 141.69
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
22	2153978		Evaporator		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	4317959		Compressor (includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (also Order 876765 Tube Kit)		Appelez-nous	-
29	2149120		Support, Heater		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 1127944)				$ 244.68
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2154736		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 47.89
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	2155566		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
44	1118841		Overload		Appelez-nous	-
45	1108115		Cover		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	WPW10662129		Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	2154119		Tube, Drain		Appelez-nous	-
53	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
54	1118805		Support, Evapaporator (r.s.)		Appelez-nous	-
54	1118806		Support, Evapaporator (l.s.)		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
56	489142		Nut		Appelez-nous	-
57	489143		Washer		Appelez-nous	-
59	876764		Valve, Access(3/16``)			Immediately	$ 95.92
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 137.25
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
59	1114190		Overload Spring		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 134.49
