SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

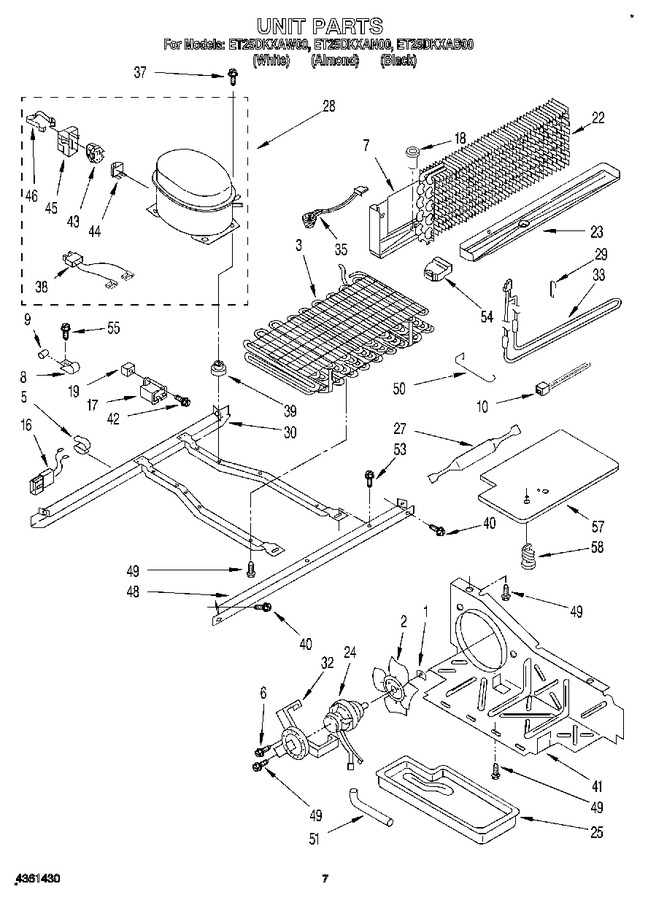

04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	851732		Fan, Blade		Appelez-nous	-
3	2154011		Condenser Assembly		Appelez-nous	-
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	1116511		Drain Pan & Heat Shield		Appelez-nous	-
8	2159720		Tube Clamp		Appelez-nous	-
9	2149670		Dampener		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
16	1118850		Housing Plug		Appelez-nous	-
17	2154565		Running Capacitor		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
21	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
22	2153980		Evaporator		Appelez-nous	-
23	1114597		Drain Pan		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	2154558		Compressor (includes Items 17, 38, 43, 44, 45 & 46) (also Order)		Appelez-nous	-
28	876765		Tube Kit				$ 90.65
29	2149120		Support, Heater		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 2160502)		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162021		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 47.89
37	876811		Screw, 1/4-28 X 1   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	2162457		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
43	N/A		Relay (see Overload)		Appelez-nous	-
44	4388953		Overload (service (includes Relay))   (Replaces: 2154761)				$ 174.31
44	4388953		Overload (production (includes Relay))   (Replaces: 2154142)				$ 174.31
45	1108115		Cover		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 84.67
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
50	1110663		Guard, Fan		Appelez-nous	-
51	2154119		Tube, Drain		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
54	1118017		Wedge, Air Baffle		Appelez-nous	-
55	W11693756		Screw, 8-32 X 1/2   (Replaces: 488687)			Immediately	$ 14.76
57	2160511		Cover, Unit Bottom		Appelez-nous	-
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 137.25
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	489396		Clip				$ 11.26
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
