SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

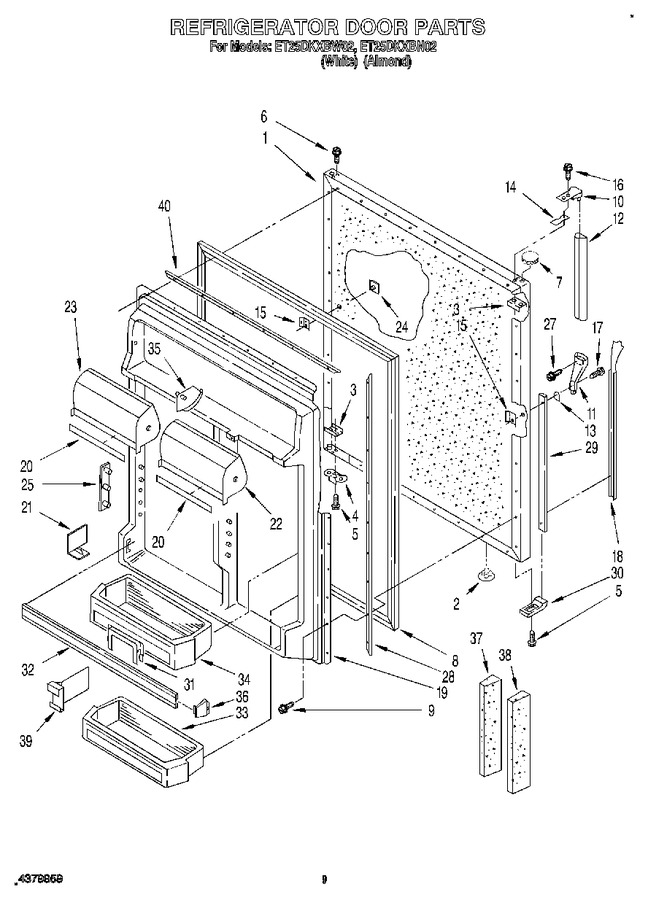

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2161817		Refrigerator Door Panel (includes Insulation) (white)		Appelez-nous	-
1	2159591		Refrigerator Door Panel (includes Insulation) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop (chrome)		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1125923		Door Gasket, Magnetic (white Model)		Appelez-nous	-
8	1121176		Door Gasket, Magnetic (almond Model)		Appelez-nous	-
9	WP489442		Screw (32)   (Replaces: 489442)			Immediately	$ 11.49
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	2150150		Handle, Center (white)		Appelez-nous	-
12	943068		Handle Center (almond)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	2150153		Insert, Handle (white)		Appelez-nous	-
18	2150154		Insert, Handle (almond)		Appelez-nous	-
19	1123261		Interior Door Panel		Appelez-nous	-
20	2157839		Trim, Door Compartment		Appelez-nous	-
21	1123293		Divider, Door Shelf		Appelez-nous	-
22	2175998		Compartment Door, Right Side		Appelez-nous	-
23	2175997		Compartment Door, Left Side		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1116986		Pin Plate				$ 12.10
27	489022		Screw, 6-20 X 3/8		Appelez-nous	-
28	1123245		Retainer, Gasket		Appelez-nous	-
29	935871		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	2163566		Retainer, Bottle		Appelez-nous	-
32	2162842		Trim, Door Shelf		Appelez-nous	-
33	2162892		Bin, Door Shelf (2)		Appelez-nous	-
34	2162893		Bin, Door Shelf (2)		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	1118008		Door Dike, Center		Appelez-nous	-
38	1118007		Door Dike, Side (2)		Appelez-nous	-
39	2152335		Divider, Bin		Appelez-nous	-
40	1121119		Retainer, Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
