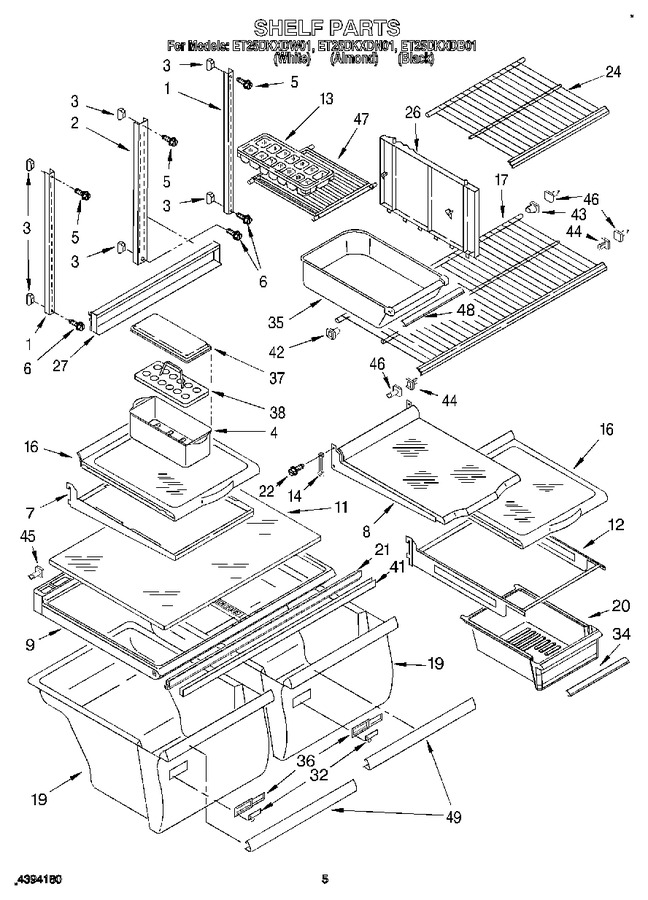

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489474)			Immediately	$ 8.55
7	2174039		Shelf, Cantilever		Appelez-nous	-
8	2174224		Shelf Assembly, Spillguard		Appelez-nous	-
9	2179421		Crisper Cover		Appelez-nous	-
11	2174146		Glass, Crisper Cover		Appelez-nous	-
12	2174044		Shelf Assembly, Spillguard		Appelez-nous	-
13	WP841180A		Tray, Ice   (Replaces: 841180)			Immediately	$ 47.84
14	2169608		Hook, Shelf		Appelez-nous	-
16	2174038		Shelf Assembly, Spillguard		Appelez-nous	-
17	1125745		Shelf, Freezer		Appelez-nous	-
19	2179413		Pan, Crisper Wide		Appelez-nous	-
20	2179414		Pan, Meat		Appelez-nous	-
21	2179393		Crisper Gasket, Front		Appelez-nous	-
22	489419		Screw		Appelez-nous	-
24	2179447		Shelf, Freezer (top)		Appelez-nous	-
26	2179446		Divider		Appelez-nous	-
27	2169801		Track Assembly, Shelf		Appelez-nous	-
32	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 30.60
34	WP2179243		Trim, Meat Pan   (Replaces: 2179245)				$ 109.65
35	2174616		Pan, Ice Cube		Appelez-nous	-
36	WP2179343		Body, Humidity Control   (Replaces: 2179343)				$ 34.02
37	2169935		Cover		Appelez-nous	-
38	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
41	2179449		Crisper Support		Appelez-nous	-
42	819091		Shelf Stud, L.s. (2)   (Replaces: 946358)				$ 41.66
43	819091		Shelf Stud, R.s. (3)   (Replaces: 946357)				$ 41.66
44	946356		Shelf Stud (3)		Appelez-nous	-
45	1106612		Shelf Stud (2)				$ 7.56
46	946355		Support Stud (8)		Appelez-nous	-
47	1125543		Shelf, Ice Compartment		Appelez-nous	-
48	2176360		Trim, Ice Pan		Appelez-nous	-
49	WP2179234		Trim, Crisper Pan   (Replaces: 2179240)				$ 88.57

    View Diagram in Separate Window       Print Part List
