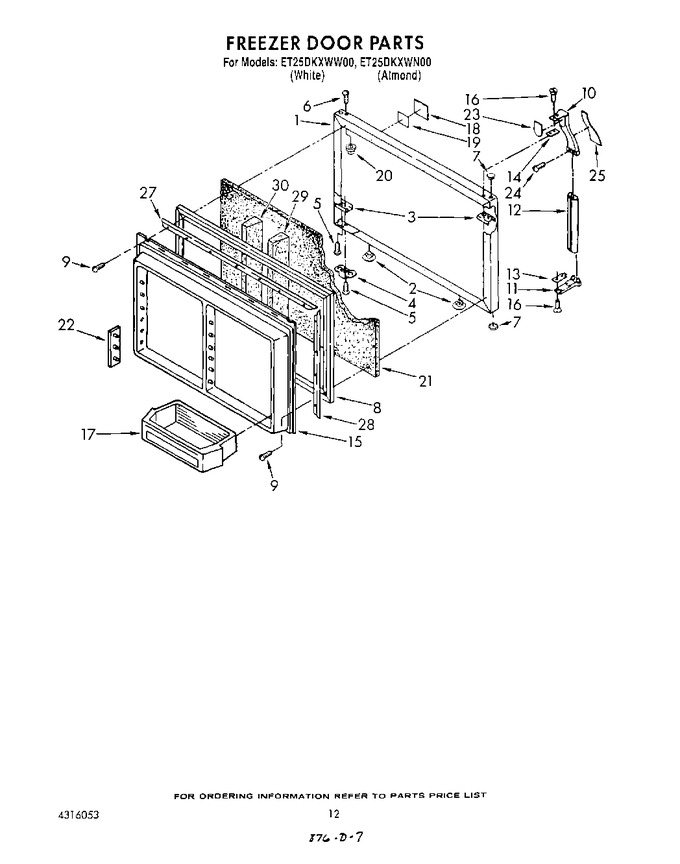

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1114585 | Panel, Freezer Door (also Order Item 21) (white) |
|
- | |||||
| 1 | 1114588 | Panel, Freezer Door (also Order Item 21) (almond) |
|
- | |||||
| 2 | 989197 | Hole Plug (2) (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) (white) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944035 | Bracket, Door Stop |
|
- | |||||
| 5 | 488930 | Screw (repair) |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 1123226 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 10 | 944163 | Handle End, Top |
|
$ 53.54 | |||||
| 11 | 944157 | Handle End |
|
- | |||||
| 12 | 1118083 | Handle, Center |
|
- | |||||
| 13 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | 1123276 | Interior Door Panel |
|
- | |||||
| 16 | 488923 | Screw (repair) |
|
- | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.98 | |||||
| 17 | 1123038 | Shelf Bin (4) |
|
- | |||||
| 18 | 1111555 | Nameplate |
|
- | |||||
| 19 | 991259 | Strip, Tape |
|
- | |||||
| 20 | 509929 | Cap, Hinge Sleeve (4) |
|
- | |||||
| 21 | 876029 | Kit, Foam Slab |
|
- | |||||
| 22 | 1116986 | Pin Plate (8) |
|
$ 12.10 | |||||
| 23 | 935074 | Shim, Endcap (top) |
|
- | |||||
| 24 | 489022 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 25 | 1106059 | Insert, Handle |
|
- | |||||
| 27 | 1121119 | Gasket Retainer, Top & Bottom (2) |
|
- | |||||
| 28 | 1121120 | Gasket Retainer, Side (2) |
|
- | |||||
| 29 | 1118008 | Door Dike, Center |
|
- | |||||
| 30 | 1118007 | Door Dike, Side (2) |
|
- |
