02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Freezer Door

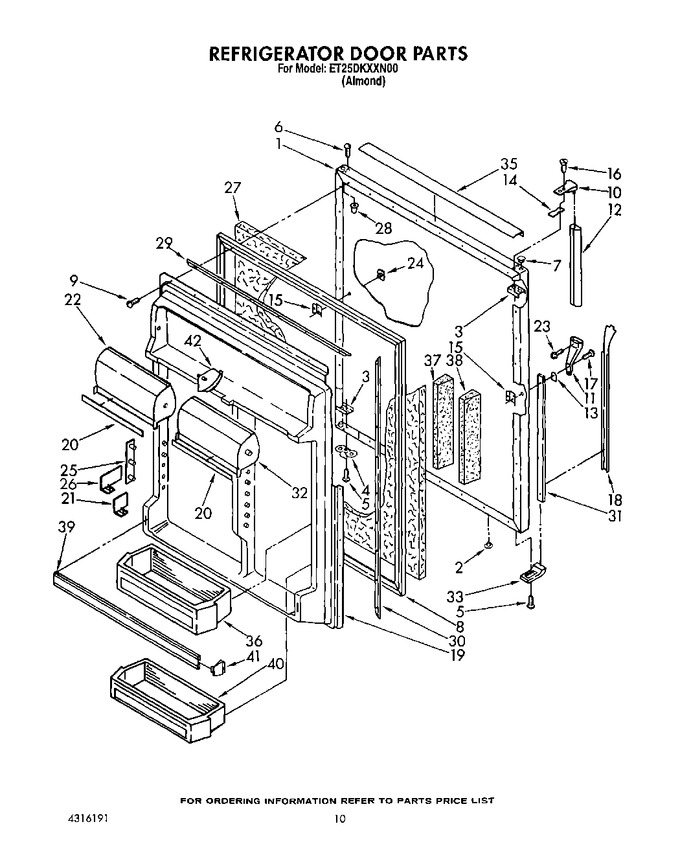

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114573		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	1114576		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1123225		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	944157		Handle End		Appelez-nous	-
11	1109189		End Cap, Handle (center)		Appelez-nous	-
12	1120781		Handle, Center		Appelez-nous	-
13	935075		Shim, Handle End (center)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
18	1119657		Insert, Handle		Appelez-nous	-
19	1123261		Interior Door Panel		Appelez-nous	-
20	1118006		Trim, Door Compartment (2)		Appelez-nous	-
21	1114380		Divider, Door Shelf		Appelez-nous	-
22	2148738		Compartment Door, Left Side		Appelez-nous	-
23	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1116986		Pin Plate (8)				$ 12.10
26	2152336		Divider, Bin (brown)		Appelez-nous	-
26	2152335		Divider, Bin (white)		Appelez-nous	-
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
29	1121119		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
30	1123245		Gasket Retainer, Side (2)		Appelez-nous	-
31	935871		Retainer, Insert		Appelez-nous	-
32	2148909		Compartment Door, Right Side		Appelez-nous	-
33	1105804		Endcap, Insert Retainer		Appelez-nous	-
35	1118063		Trim, Door		Appelez-nous	-
36	1123037		Shelf Bin (2)		Appelez-nous	-
37	1118008		Door Dike, Center		Appelez-nous	-
38	1118007		Door Dike, Side (2)		Appelez-nous	-
39	1116999		Trim, Door Shelf		Appelez-nous	-
40	1123038		Shelf Bin (2)		Appelez-nous	-
41	4386917		End Cap, Trim (2)   (Replaces: 1105685)			Immediately	$ 18.90
42	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06

    View Diagram in Separate Window       Print Part List
