SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Freezer Door


05 - Shelf


06 - Unit


07 - Refrigerator Door


08 - Motor And Ice Container


09 - Dispenser Front

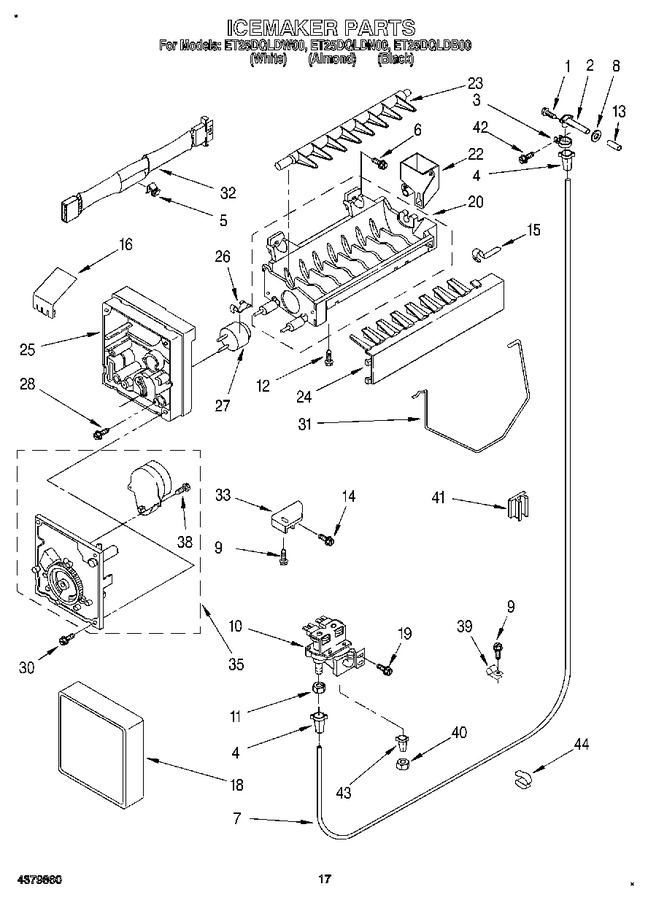

10 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 12.59
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
4	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
7	W10823511		Tube, Water   (Replaces: 1119096)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	WP489478		Screw   (Replaces: 489242)				$ 8.18
10	W10853654		Valve, Solenoid   (Replaces: 2181706)				$ 157.68
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
12	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
13	2174755		Tube, Water Inlet				$ 22.18
14	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
15	652604		Clip		Appelez-nous	-
16	2160751		Air Deflector		Appelez-nous	-
18	WPW10289690		Cover   (Replaces: 2174155)			Immediately	$ 8.82
19	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.78
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 90.35
25	WP2195914		Support   (Replaces: 627790)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order)   (Replaces: 628397)				$ 114.64
27	542369		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 2160689)			Immediately	$ 63.21
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
35	W10190935		Module Assembly (includes Item 38)   (Replaces: 628399)			Immediately	$ 110.07
38	489136		Screw				$ 10.80
39	WP488366		Tube Clamp   (Replaces: 489385)				$ 11.92
40	1129179		Nut, Compression		Appelez-nous	-
41	W11501419		Clip, Tube Water   (Replaces: 2154101)			Immediately	$ 12.10
42	WP488787		Screw   (Replaces: 488886)				$ 11.26
43	1129177		Insert				$ 5.27
44	934011		Clip		Appelez-nous	-
99	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
99	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
99	4317943		Complete Icemaker Assembly			Immediately	$ 183.45
99	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
99	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
99	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
99	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
99	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
99	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
99	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
99	2169064		Door Removal Instructions		Appelez-nous	-
99	350942		Primer White (13 Oz. Spray Can)				$ 94.14
99	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
99	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
99	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
99	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
99	833938		Kit, Terminal Connector				$ 8.47
99	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
99	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
99	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
99	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
99	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
99	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
99	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
99	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2169248		Service & Wiring Sheet		Appelez-nous	-
	LIT2175885		Care & Use Guide		Appelez-nous	-
	LIT2180547		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
