Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1118102 Shelf, Ladder (2) Appelez-nous -
2 1118101 Shelf Ladder, Center Appelez-nous -
3 520965 Screw, Support (6) Special Order $ 31.35

4 1106612 Shelf Stud (2) Special Order $ 7.56

5 489345 Screw, Appelez-nous -
6 WP489474 Screw   (Replaces: 489450) In-Stock Immediately $ 8.55

7 2174039 Shelf, Cantilever (2) Appelez-nous -
8 946355 Support, Stud Appelez-nous -
9 2179421 Crisper Cover Appelez-nous -
11 2174146 Glass, Crisper Cover Appelez-nous -
12 2174044 Shelf Assembly, Spillguard Appelez-nous -
14 946356 Shelf Stud (2) Appelez-nous -
15 2179449 Crisper Support Appelez-nous -
16 2174038 Shelf Assembly, Spillguard Appelez-nous -
17 2160620 Support Wall I/m Appelez-nous -
18 2160621 Anchor-screw I/m Appelez-nous -
19 2179413 Pan, Crisper Appelez-nous -
20 2179414 Pan, Meat Appelez-nous -
21 2179393 Crisper Gasket, Front Appelez-nous -
23 819091 Shelf Stud (2)   (Replaces: 946358) Special Order $ 41.66

24 2160696 Shelf, Freezer (top) (2) Appelez-nous -
27 W10136387A Bin, Egg   (Replaces: 2169933) Special Order $ 19.54

28 1115380 Slide, Ice Compartment Appelez-nous -
29 WP489478 Screw   (Replaces: 489242) Special Order $ 8.18

30 2173904 Door, Ice Compartment Appelez-nous -
32 WP2179342 Slide, Humidity   (Replaces: 2179342) Special Order $ 30.60

33 2174224 Slide Shelf, Assembly Appelez-nous -
34 2169608 Hook, Shelf Appelez-nous -
35 489419 Screw Appelez-nous -
36 WP2179343 Body, Humidity Control   (Replaces: 2179343) Special Order $ 34.02

37 2169935 Cover, Egg Bin Appelez-nous -
38 WP2177817 Egg Carrier   (Replaces: 2164373) Special Order $ 18.78

39 489395 Roll Pin Appelez-nous -
40 2160613 Door-platform Appelez-nous -
41 2160615 Gasket-platform Appelez-nous -
42 2160612 Platform-ice Container Appelez-nous -
43 2169801 Slide Track Assy., Shelf Appelez-nous -
47 WP2179234 Trim, Crisper Pan   (Replaces: 2179240) Special Order $ 88.57

48 WP2179243 Trim, Meat Pan   (Replaces: 2179245) Special Order $ 109.65

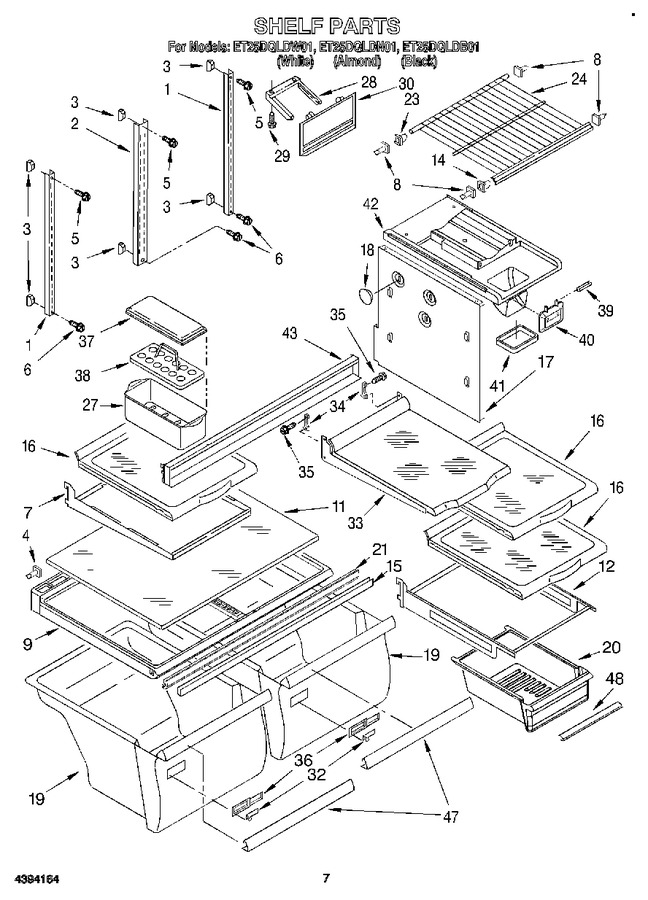

    View Diagram in Separate Window     Print Icon   Print Part List
