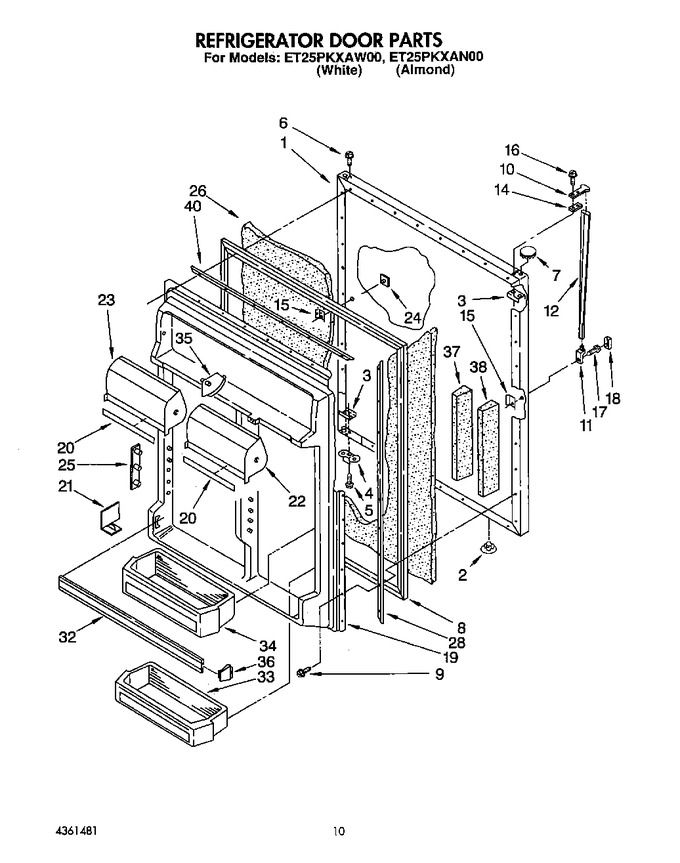

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159589		Panel, Refrigerator Door (also Order Item 26) (almond)		Appelez-nous	-
1	2161819		Panel, Refrigerator Door (also Order Item 26) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1123225		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 51.98
12	2148036		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	WP1101634		Cover, Screw   (Replaces: 981182)				$ 9.68
19	1123261		Interior Door Panel		Appelez-nous	-
20	1118006		Trim, Door Compartment		Appelez-nous	-
21	2152336		Divider, Door Shelf		Appelez-nous	-
22	2162763		Compartment Door, Right Side		Appelez-nous	-
23	2148222		Compartment Door, Left Side		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1116986		Pin Plate (8)				$ 12.10
26	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	1123245		Retainer, Gasket		Appelez-nous	-
32	2162762		Trim, Door Shelf		Appelez-nous	-
33	2163339		Bin, Door Shelf (2)		Appelez-nous	-
34	2163340		Bin, Door Shelf (deep) (2)		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	1118008		Door Dike, Center		Appelez-nous	-
38	1118007		Door Dike, Side (2)		Appelez-nous	-
40	1121119		Retainer, Gasket		Appelez-nous	-
