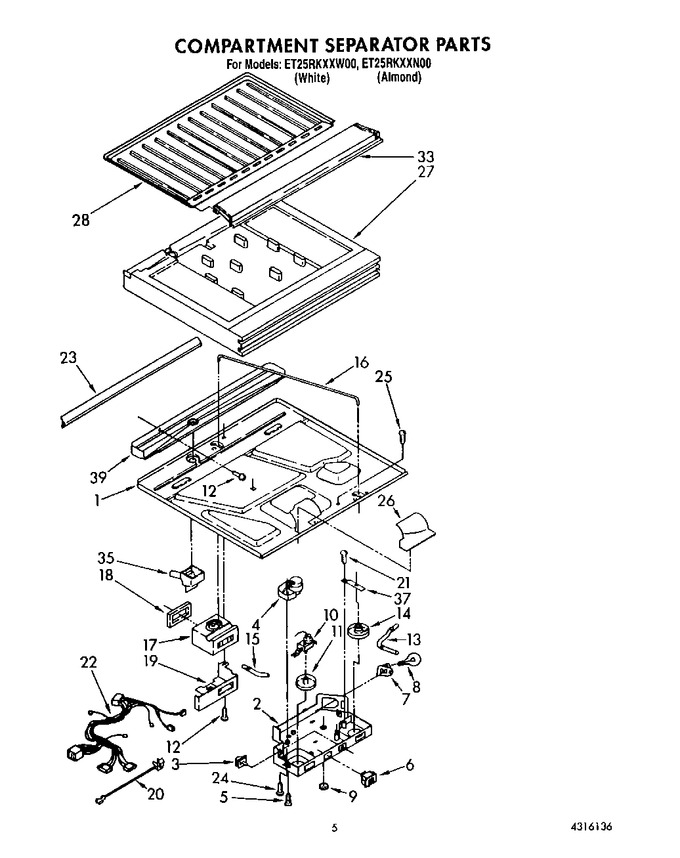

04 - Compartment Separator


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114559		Bottom, Compartment Separator		Appelez-nous	-
2	1126029		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 1116849)			Immediately	$ 40.40
4	CC901		Timer, Defrost (10 Hour)   (Replaces: 1127570)			Immediately	$ 58.27
5	WP487353		Screw   (Replaces: 488693)				$ 7.95
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket (2)   (Replaces: 851067)			Immediately	$ 115.67
8	W11679940		Bulb, Light (2)   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Assembly   (Replaces: 1123393)				$ 219.95
11	1114315		Knob, Thermostat		Appelez-nous	-
12	WP489478		Screw   (Replaces: 489242)				$ 8.18
13	1105475		Light, Bar		Appelez-nous	-
14	1114314		Knob, Air Control		Appelez-nous	-
15	1105476		Light, Bar		Appelez-nous	-
16	1118057		Rod, Connecting		Appelez-nous	-
17	1123221		Air Diffuser Assembly		Appelez-nous	-
18	1114325		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	1114482		Ground Wire		Appelez-nous	-
21	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
22	2149919		Wiring Assembly, Control Box		Appelez-nous	-
23	1116698		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2 (2)   (Replaces: 489048)				$ 8.78
25	WP488163		Screw   (Replaces: 488540)				$ 7.92
26	942817		Insulation, Filler		Appelez-nous	-
27	1114561		Insulation, Compartment Separator		Appelez-nous	-
28	1114562		Separator, Compartment (top) (rear)		Appelez-nous	-
33	1115189		Separator, Compartment (top) (front)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
37	1105457		Bracket, Control Knob		Appelez-nous	-
39	1114597		Drain Pan		Appelez-nous	-
