Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2183862 Freezer Door (includes Illus. 2,8 & 12) (white) Appelez-nous -
1 2200928 Freezer Door (includes Illus. 2,8 & 12) (biscuit) Appelez-nous -
2 2183000 Tap Plate Special Order $ 36.19

4 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 13.37

6 WP8281206 Screw   (Replaces: 8281206) Special Order $ 8.37

7 WP2212649 Hole Plug (biscuit)   (Replaces: 2212649) Special Order $ 7.99

7 WP2212648 Hole Plug (white)   (Replaces: 2212648) In-Stock Immediately $ 8.19

8 2159060 Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967) Special Order $ 336.01

9 WP488921 Screw   (Replaces: 488921) In-Stock Immediately $ 8.24

12 WP2183003 Thimble   (Replaces: 2183003) Special Order $ 8.14

16 WP489357 Screw   (Replaces: 489357) In-Stock Immediately $ 7.55

17 2195947 Trim, Door Shelf (2) Special Order $ 50.94

18 WP2213265 Nameplate   (Replaces: 2262218) In-Stock Immediately $ 93.18

19 2213111T Handle (biscuit) Appelez-nous -
19 4388947 Handle (white)   (Replaces: 2213111W) Special Order $ 204.47

22 WP2195916K Endcap, Trim (4)   (Replaces: 2195916) In-Stock Immediately $ 13.18


    View Diagram in Separate Window     Print Icon   Print Part List

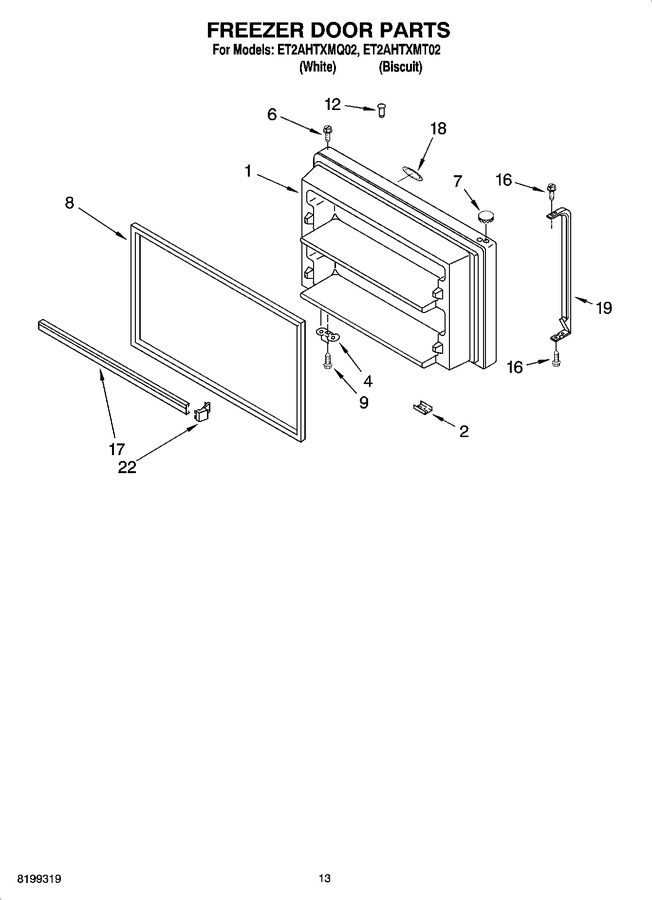

Diagram for ET2AHTXMT02
