View Diagram in Separate Window
Print Part List

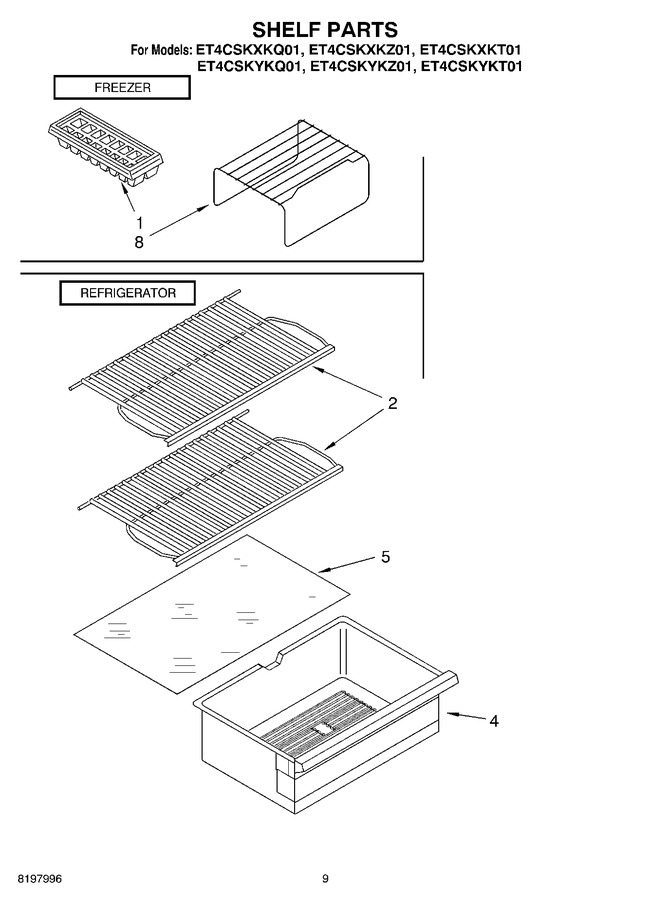

SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP841180A | Ice Tray (Replaces: 2202063) |
|
Immediately | $ 45.56 | ||||
| 2 | WP2192515 | Shelf (2) (Replaces: 2192515) |
|
$ 122.33 | |||||
| 4 | WP2192009 | Crisper Pan (Replaces: 2208098) |
|
Immediately | $ 135.81 | ||||
| 5 | WP9791659 | Glass Shelf (Replaces: 9791659) |
|
$ 224.78 | |||||
| 8 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 8 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 8 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 8 | WPW10401596 | Shelf, Ice Tray (Replaces: 2174797) |
|
$ 82.28 | |||||
| 8 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 8 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 8 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | |||||
| 8 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 8 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 8 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 8 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 8 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 8 | 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 89.66 | |||||
| 8 | 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| 8 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 8 | 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 26.45 | ||||
| 8 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 8 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 8 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 8 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 8 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 8 | 1117510 | Torx Key |
|
$ 5.84 | |||||
| 8 | W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 150.98 | ||||
| 8 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 8 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 8 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 8 | 350956 | Enamel, Almond (12 Oz. Spray Can) |
|
$ 51.44 | |||||
| 8 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 8 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 8 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 8 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 |
