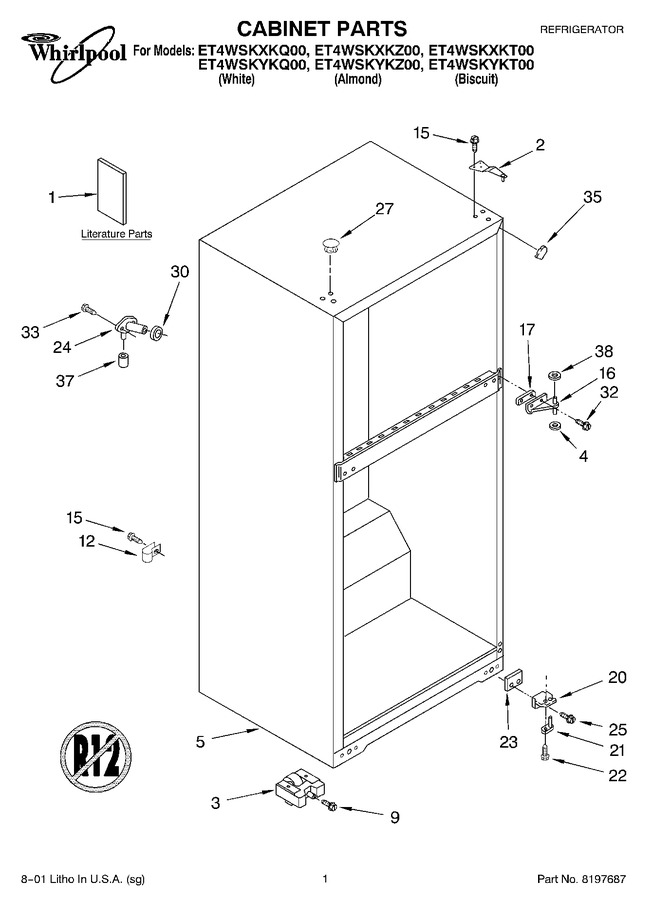

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2217627		Energy Label		Appelez-nous	-
1	LIT2210108		Use & Care Guide		Appelez-nous	-
1	LIT2210096		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	2217757		Roller-front		Appelez-nous	-
4	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 9.88
5	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	2222100		Screw   (Replaces: 2201556)				$ 99.81
12	549193		Clamp-cord				$ 13.39
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
17	2166043		Shim, Hinge Center				$ 66.44
20	WP2325482		Hinge Butt   (Replaces: 2166094)			Immediately	$ 76.19
21	9791682		Hinge-pin Bott.				$ 26.60
22	WP3428970		Screw   (Replaces: 3428970)				$ 10.91
23	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
24	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
25	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
27	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 21.78
27	2200924		Hole Plug (6) (biscuit)		Appelez-nous	-
27	2201013		Hole Plug (6) (almond)		Appelez-nous	-
30	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
32	489498		Screw		Appelez-nous	-
33	WPW10141645		Screw, 8 X 1/2 A   (Replaces: 489084)				$ 7.67
35	2166004		Corner Filler (almond)		Appelez-nous	-
35	2202282		Corner Filler (biscuit)		Appelez-nous	-
35	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.70
37	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.26
38	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
