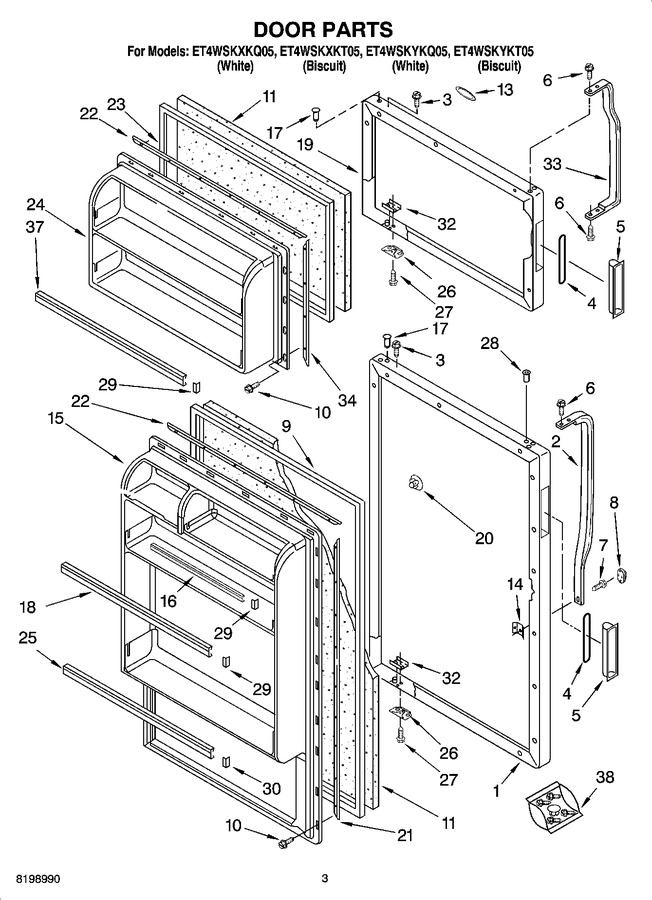

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215347		Refrigerator Door Panel (also Order Item 11) (biscuit)		Appelez-nous	-
1	2201548		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
2	WP2221946T		Handle (rc) (bow) (biscuit)   (Replaces: 2221946T)				$ 145.01
2	WP2221946W		Handle (rc) (bow) (white)   (Replaces: 2221946W)			Immediately	$ 130.11
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	2222107		Gasket, Handle		Appelez-nous	-
5	WP984493		Handle (white)   (Replaces: 984493)				$ 109.04
5	2213998		Handle (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
7	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
8	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
8	2202819T		Cover, Screw (biscuit)				$ 8.02
9	2188448A		Door Gasket, Magnetic   (Replaces: 2262078)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 88.74
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2256662		Interior Door Panel (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf (upper)   (Replaces: 2163630)			Immediately	$ 63.40
17	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
18	WP2163629		Trim, Door (middle)   (Replaces: 2163631)			Immediately	$ 63.40
19	2201550		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
19	2215354		Freezer Door Panel (also Order Item 11) (biscuit)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.59
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2262079)			Immediately	$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	2163628		Trim, Door Shelf (lower)		Appelez-nous	-
26	2217944		Bracket, Door Stop				$ 26.55
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
32	2183198		Tap Plate		Appelez-nous	-
33	WP2215015		Handle (fc) (bow) (biscuit)   (Replaces: 2215015)				$ 145.93
33	WP2202098		Handle (fc) (bow) (white)   (Replaces: 2202098)				$ 149.35
34	1122553		Retainer, Gasket		Appelez-nous	-
37	WP2163629		Trim-door (2)   (Replaces: 2163629)			Immediately	$ 63.40
38	2262997		Hole Plug Kit (if Bow Handle Is Removed) (biscuit)		Appelez-nous	-
38	2262996		Hole Plug Kit (if Bow Handle Is Removed) (white)		Appelez-nous	-
