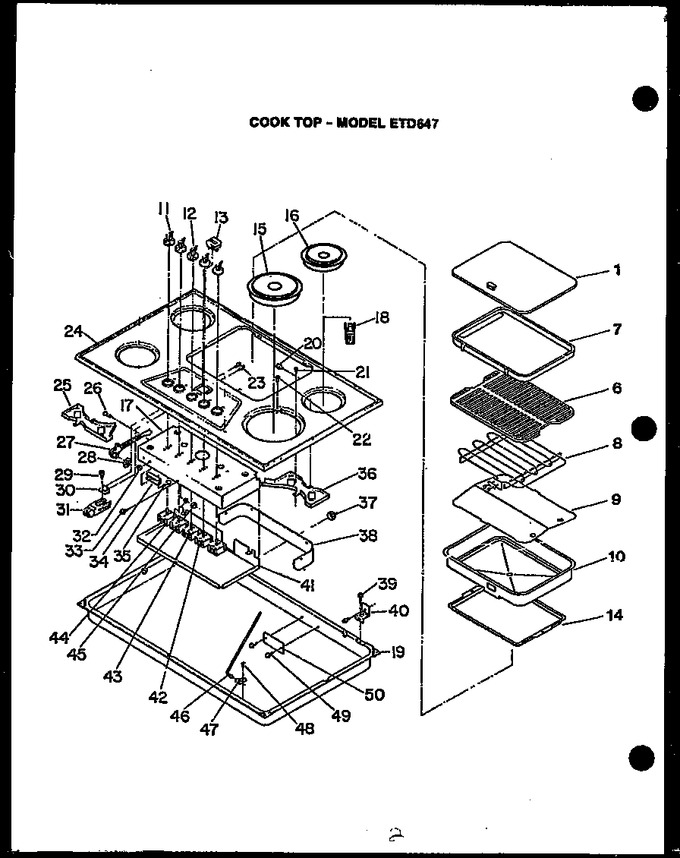

View Diagram in Separate Window
Print Part List
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0051854 | Griddle Cover, Chrome |
|
- | |||||
| 6 | Y0042702 | Grille Alum Grill Tops |
|
- | |||||
| 7 | 0043503 | Griddle, Teflon (blk) |
|
- | |||||
| 8 | 42135 | Griddle Element |
|
- | |||||
| 9 | Y0054060 | Insert, Griddle Pan (blk) |
|
- | |||||
| 10 | 54059K | Griddle Pan, Chrome |
|
- | |||||
| 11 | 0042638 | X Surface Switch Knob Caloric |
|
- | |||||
| 12 | 0042638 | X Surface Switch Knob Caloric |
|
- | |||||
| 13 | 0042198 | Indicator Light Et-110 |
|
- | |||||
| 14 | Y0042724 | Pan, Grease Kgt591 |
|
- | |||||
| 15 | 60606B | Solid Element, Large |
|
- | |||||
| 16 | 60600B | Solid Element, Small |
|
- | |||||
| 17 | 54786 | Switch Box Assembly |
|
- | |||||
| 18 | 54794 | Plug Block Assembly |
|
- | |||||
| 19 | 54202CG | Burner Box |
|
- | |||||
| 20 | Y0041810 | Screw |
|
- | |||||
| 21 | 0041784 | Metal Screw 8x1/4 Ph Pan Hd |
|
- | |||||
| 22 | Y41808 | Screw |
|
- | |||||
| 23 | Y41808 | Screw |
|
- | |||||
| 24 | 54200L | Main Top, Almond |
|
- | |||||
| 24 | 54200H | Main Top, Harvest Gold |
|
- | |||||
| 24 | 54200W | Main Top, White |
|
- | |||||
| 24 | 54098K | Main Top, Chrome |
|
- | |||||
| 25 | 54796 | Wire Channel Assembly, L.h |
|
- | |||||
| 26 | Y00000000 | See Note Screw, Part Of Ref. No. 27 |
|
- | |||||
| 27 | Y0043746 | 5651121 C |
|
- | |||||
| 28 | Y00000000 | See Note Washer, Part Of Ref. No. 27 |
|
- | |||||
| 29 | 0041790 | Tapng Scrw 6 32x5/16 Ph Rn Hd |
|
- | |||||
| 31 | 330031 | Plug Block (Replaces: Y0042153) |
|
Immediately | $ 16.09 | ||||
| 32 | M0282005 | Nut A (Replaces: Y0041843) |
|
$ 7.85 | |||||
| 33 | Y41808 | Screw |
|
- | |||||
| 34 | Y0042191 | Term Blk Eo&go 1m-2.5m-5m-10m |
|
- | |||||
| 35 | 0041786 | Tapng Screw 6 32x1/2 Ph P Hd |
|
- | |||||
| 36 | 54799 | Wire Channel Assembly, R.h. |
|
- | |||||
| 37 | Y0042659 | Snap Bushing |
|
- | |||||
| 38 | Y0040633 | Heat Shield |
|
- | |||||
| 39 | 41800 | Screw, Hinge Mtg. |
|
- | |||||
| 40 | Y0045368 | Phillips Screw No.8 3/8 |
|
- | |||||
| 41 | 40702 | Switch Box Cover |
|
- | |||||
| 42 | W11121639 | Switch,inf(240p-1243) (Replaces: Y0042060) |
|
$ 165.74 | |||||
| 43 | W11121639 | Switch,inf(240p-1243) (Replaces: Y0042060) |
|
$ 165.74 | |||||
| 44 | Y00000000 | See Note Lockwasher, Part Of Ref. No. 45 |
|
- | |||||
| 45 | 0041846 | Hex Nut 10-24 Nickel |
|
- | |||||
| 46 | 0042734 | Top Support Rod |
|
- | |||||
| 47 | Y0041869 | Timerman |
|
- | |||||
| 48 | Y41808 | Screw |
|
- | |||||
| 49 | Y41808 | Screw |
|
- | |||||
| 50 | Y00000000 | See Note Serial Plate - Not A Replacement Part |
|
- | |||||
| NI | Y0054785 | Heat Shield |
|
- | |||||
| NI | 48008 | Heat Baffle |
|
$ 14.25 | |||||
| NI | 54802 | Assy,wiring Harness |
|
- |
