SELECT A DIAGRAM

01 - Cabinet Parts

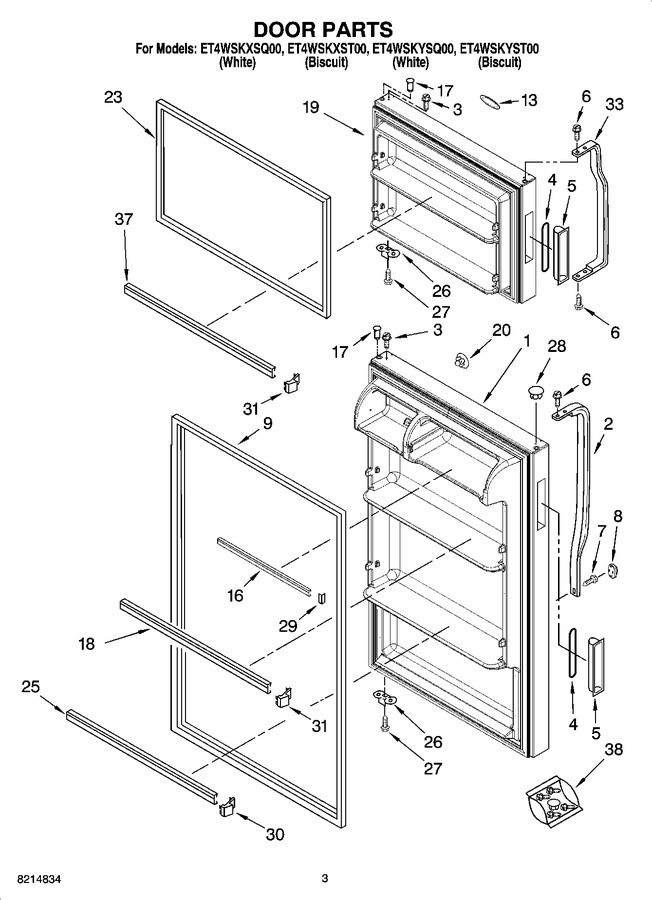

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316192T		Refrigerator Door Includes Item 9 (biscuit)		Appelez-nous	-
1	2316192W		Refrigerator Door Includes Item 9 (white)		Appelez-nous	-
2	WP2221946T		Handle (rc) (bow) (biscuit)   (Replaces: 2221946T)				$ 145.01
2	WP2221946W		Handle (rc) (bow) (white)   (Replaces: 2221946W)			Immediately	$ 130.11
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	2222107		Gasket, Handle		Appelez-nous	-
5	WP984493		Handle (white)   (Replaces: 984493)				$ 109.04
5	2213998		Handle (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
7	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
8	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
8	2202819T		Cover, Screw (biscuit)				$ 8.02
9	WP2319265T		Door Gasket, Magnetic   (Replaces: 2264506)			Immediately	$ 184.89
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 88.74
16	W11129820		Trim, Door Shelf (upper)   (Replaces: 2264785)			Immediately	$ 121.28
17	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
18	WP2266727		Trim, Door (middle)   (Replaces: 2263260)			Immediately	$ 92.50
19	2316193T		Freezer Door Includes Item 23 Order Item 11) (biscuit)		Appelez-nous	-
19	2316193W		Freezer Door Includes Item 23 Order Item 11) (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.59
23	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 169.53
25	WP2266738		Trim, Door Shelf (lower)   (Replaces: 2263259)				$ 111.69
26	2217944		Bracket, Door Stop				$ 26.55
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 12.55
31	WP2156003		Plug-trim   (Replaces: 2156003)			Immediately	$ 12.62
33	WP2215015		Handle (fc) (bow) (biscuit)   (Replaces: 2215015)				$ 145.93
33	WP2202098		Handle (fc) (bow) (white)   (Replaces: 2202098)				$ 149.35
37	WP2266727		Trim-door (2)   (Replaces: 2263260)			Immediately	$ 92.50
38	2262997		Hole Plug Kit (if Bow Handle Is Removed) (biscuit)		Appelez-nous	-
38	2262996		Hole Plug Kit (if Bow Handle Is Removed) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
