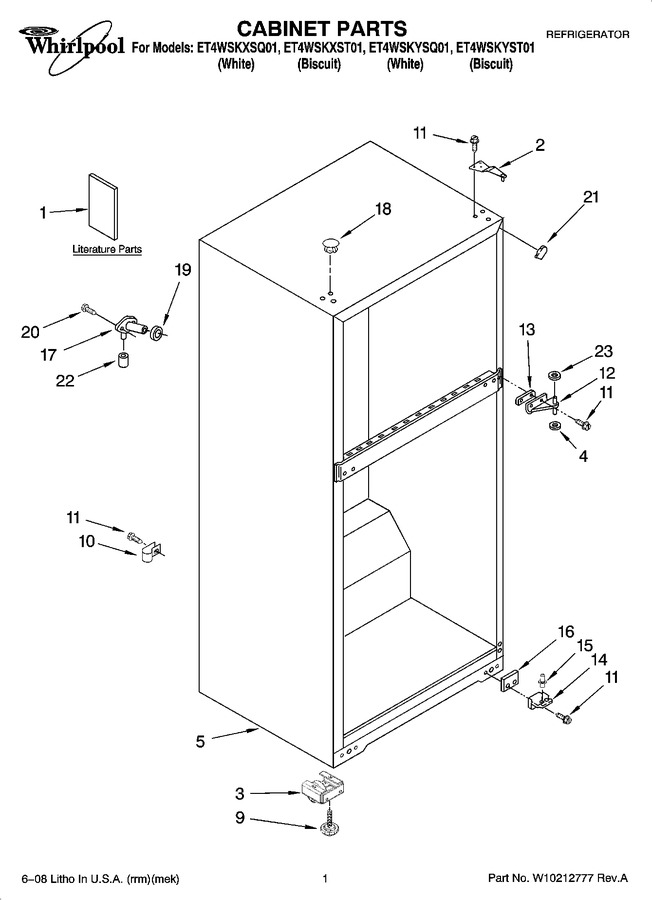

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	2265209		Service & Wiring Sheet		Appelez-nous	-
1	W10187751		Energy Label		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Roller, Front   (Replaces: W10142530)			Immediately	$ 112.48
4	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
9	WPW10133299		Leveler Screw-45mm   (Replaces: W10142551)				$ 11.76
10	549193		Clamp-cord				$ 13.39
11	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
12	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
13	2166043		Shim, Hinge Center				$ 66.44
14	WP2325482		Hinge Butt   (Replaces: 2325482)			Immediately	$ 76.19
15	WP2325483		Hinge-pin, Bottom   (Replaces: 2325483)			Immediately	$ 7.19
16	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
17	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
18	2200924		Hole Plug (6) (biscuit)		Appelez-nous	-
18	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 21.78
19	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
20	WP488729		Screw, 8 X 1/2 A   (Replaces: 2262176)			Immediately	$ 7.79
21	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.70
21	2202282		Corner Filler (biscuit)		Appelez-nous	-
22	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.26
23	WP487802		Washer   (Replaces: 487802)			Immediately	$ 7.91
