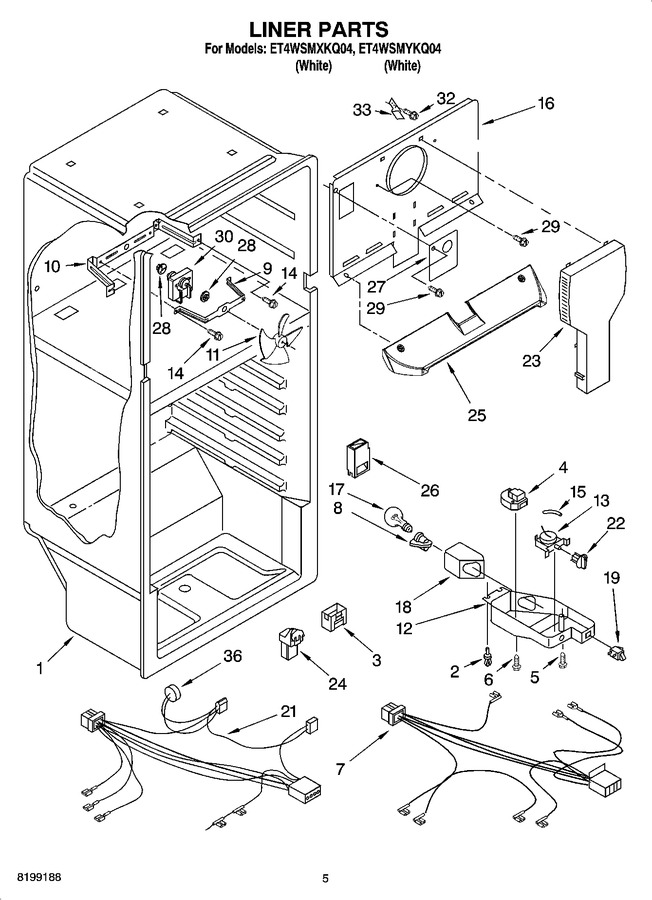

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet |
|
$ 11.83 | |||||
| 3 | 2183061 | Cover, Air Diffuser |
|
$ 36.62 | |||||
| 4 | W10822278 | Timer, Defrost (Replaces: 2188371) |
|
Immediately | $ 34.44 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.95 | |||||
| 6 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.57 | |||||
| 7 | 2176927 | Wire Assembly (control Box) |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: 2197404) |
|
$ 40.27 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 12 | 2215213 | Control Box |
|
$ 110.52 | |||||
| 13 | WPW10567140 | Thermostat (Replaces: 2183403) |
|
Immediately | $ 92.99 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 7.95 | |||||
| 16 | 2201205 | Cover, Evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2252970) |
|
Immediately | $ 11.30 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 103.73 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 21 | WP2192096 | Wiring-freezer (includes Item 36) (Replaces: 2192096) |
|
$ 258.64 | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 26.38 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2261978 | Cover, Air Return |
|
$ 135.09 | |||||
| 26 | 2221992 | Air Diffuser |
|
$ 35.67 | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2217783) |
|
$ 44.97 | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2264462) |
|
Immediately | $ 43.97 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | WPW10189703 | Evaporator Fan Motor (Replaces: 2221893) |
|
Immediately | $ 70.17 | ||||
| 32 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 33 | 2262195 | Deflector |
|
- | |||||
| 36 | WP4387490 | Defrost Bimetal (Replaces: 2183073) |
|
Immediately | $ 30.88 |
