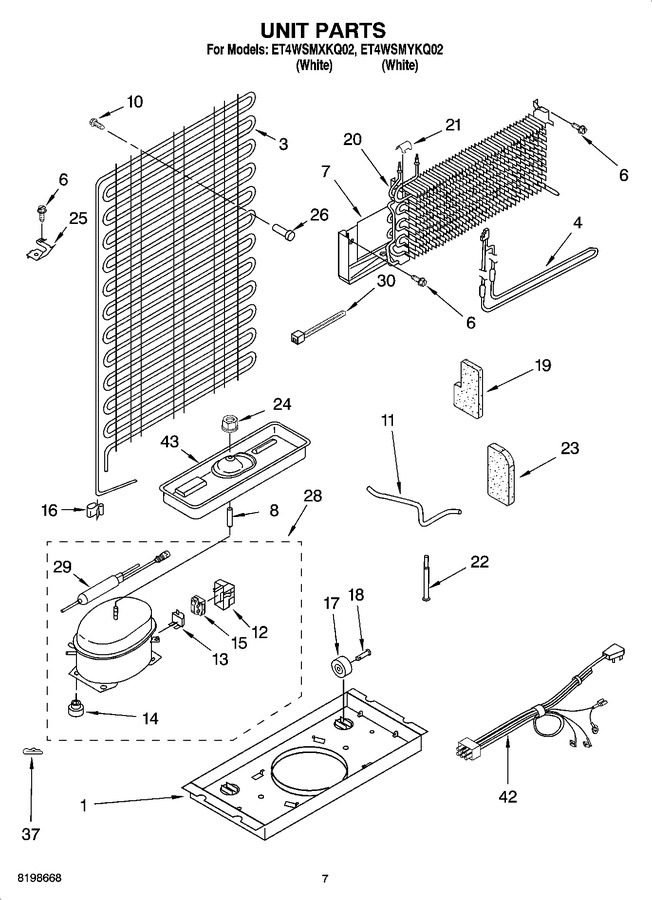

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2221886 | Support Plate, Compressor |
|
- | |||||
| 3 | WP2252730 | Condenser (Replaces: 2252730) |
|
$ 273.61 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 7 | 2201515 | Heat Shield |
|
- | |||||
| 8 | 2176844 | Spacer |
|
- | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 11 | 2262245 | Tube, Discharge |
|
- | |||||
| 12 | WP2162358 | Cover Terminal (service) (Replaces: 4387731) |
|
$ 90.75 | |||||
| 12 | WP2162358 | Cover, Terminal (production) (Replaces: 2162358) |
|
$ 90.75 | |||||
| 13 | WP4387938 | Overload (service (includes Relay)) (Replaces: 4387938) |
|
$ 189.12 | |||||
| 13 | WP2149959 | Overload (production) (Replaces: 2149959) |
|
$ 133.39 | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.96 | |||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 15 | WP2258450 | Start Relay (production (service See Overload)) (Replaces: 2258450) |
|
$ 112.82 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2262072) |
|
Immediately | $ 18.21 | ||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assy. (Replaces: 2215207) |
|
$ 309.15 | |||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 22 | 2192332 | Tube, Process |
|
- | |||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.24 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Bracket, Condenser |
|
- | |||||
| 28 | W10823815 | Compressor (includes Items 12,13,14,15,29) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: 2258449) |
|
$ 674.15 | |||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 52.57 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2201796) |
|
Immediately | $ 52.57 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 7.90 | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 42 | 2202155 | Wire Assembly Unit |
|
- | |||||
| 43 | N/A | Refrigerant Charge 3.75 Ozs. (r134a) |
|
- | |||||
| 43 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 43 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 43 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 43 | 2176668 | Tray, Evaporator |
|
$ 77.40 | |||||
| 43 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 43 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 43 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 43 | 978029 | Valve Access (5/8``) |
|
$ 93.85 |
