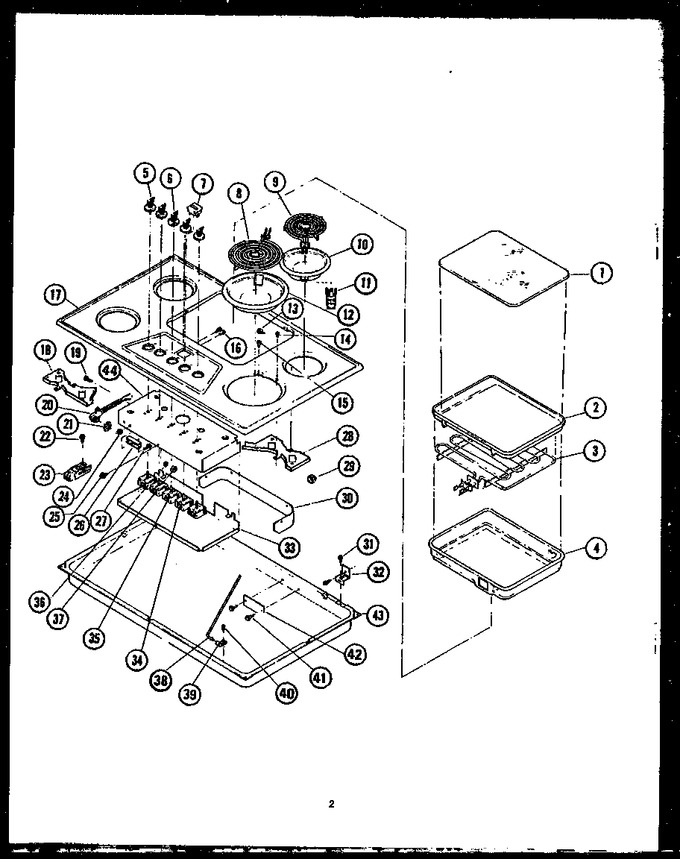

01 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040619		Grille Cover (chr)		Appelez-nous	-
2	0043503		Griddle, Teflon (blk)		Appelez-nous	-
3	42174		Plate		Appelez-nous	-
4	41049		Oven Light		Appelez-nous	-
5	0042638		X Surface Switch Knob Caloric		Appelez-nous	-
6	0042638		X Surface Switch Knob Caloric		Appelez-nous	-
7	0042198		Indicator Light Et-110		Appelez-nous	-
8	WP3191454		Sub 51572 Surface Element   (Replaces: Y0042127)				$ 181.81
9	Y0042128		Sub 51575 Element 6``		Appelez-nous	-
10	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: Y0042143)			Immediately	$ 13.39
11	330031		Kit, Top Element Term Block   (Replaces: Y0042147)			Immediately	$ 16.09
12	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: Y0042144)			Immediately	$ 17.29
13	Y0041810		Screw		Appelez-nous	-
14	0041784		Metal Screw 8x1/4 Ph Pan Hd		Appelez-nous	-
15	0041784		Metal Screw 8x1/4 Ph Pan Hd		Appelez-nous	-
16	Y41808		Screw		Appelez-nous	-
17	47453		Avocado		Appelez-nous	-
17	Y0043775		Main Top Coffee Cet480		Appelez-nous	-
17	0040112		Sub 54098, Main Top, Chrome		Appelez-nous	-
17	40111F		Main Top, White		Appelez-nous	-
17	Y0047454		Sub 40109h, Main Top,harvest		Appelez-nous	-
17	Y0043776		Sub 54200l, Main Top		Appelez-nous	-
18	Y0041362		Wire Channel Assy Lt Et-278280		Appelez-nous	-
19	Y00000000		See Note Screw, Part Of Ref. No. 27		Appelez-nous	-
20	49466		Washer, Part Of Ref. No. 27		Appelez-nous	-
21	Y00000000		See Note Washer, Part Of Ref. No. 27		Appelez-nous	-
22	0041790		Tapng Scrw 6 32x5/16 Ph Rn Hd		Appelez-nous	-
23	330031		Kit, Top Element Term Block   (Replaces: Y0042147)			Immediately	$ 16.09
24	M0282005		Nut A   (Replaces: Y0041843)				$ 7.85
25	Y41808		Screw		Appelez-nous	-
26	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
27	0041786		Tapng Screw 6 32x1/2 Ph P Hd		Appelez-nous	-
28	Y0041361		Wire Channel Assy Rt Et-278280		Appelez-nous	-
29	Y0042659		Snap Bushing		Appelez-nous	-
30	Y0040633		Heat Shield		Appelez-nous	-
31	41800		Screw, Hinge Mtg.		Appelez-nous	-
32	Y0045368		Phillips Screw No.8 3/8		Appelez-nous	-
33	40702		Switch Box Cover		Appelez-nous	-
34	W11121639		Sub 42060 Inf Switch Th Rec   (Replaces: Y0046342)				$ 165.74
35	Y0046432		Valve Mtg Brkt Ku 617 647		Appelez-nous	-
36	Y00000000		See Note Lockwasher, Part Of Ref. No. 45		Appelez-nous	-
37	0041846		Hex Nut 10-24 Nickel		Appelez-nous	-
38	0042734		Top Support Rod		Appelez-nous	-
39	Y0041869		Timerman		Appelez-nous	-
40	Y41808		Screw		Appelez-nous	-
42	Y00000000		See Note Serial Plate - Not A Replacement Part		Appelez-nous	-
43	Y0040455		Burner Box 284		Appelez-nous	-
43	Y41808		Screw		Appelez-nous	-
44	45149		Switch Box		Appelez-nous	-
NI	48008		Heat Baffle				$ 14.25
