SELECT A DIAGRAM

01 - Top And Cabinet Parts

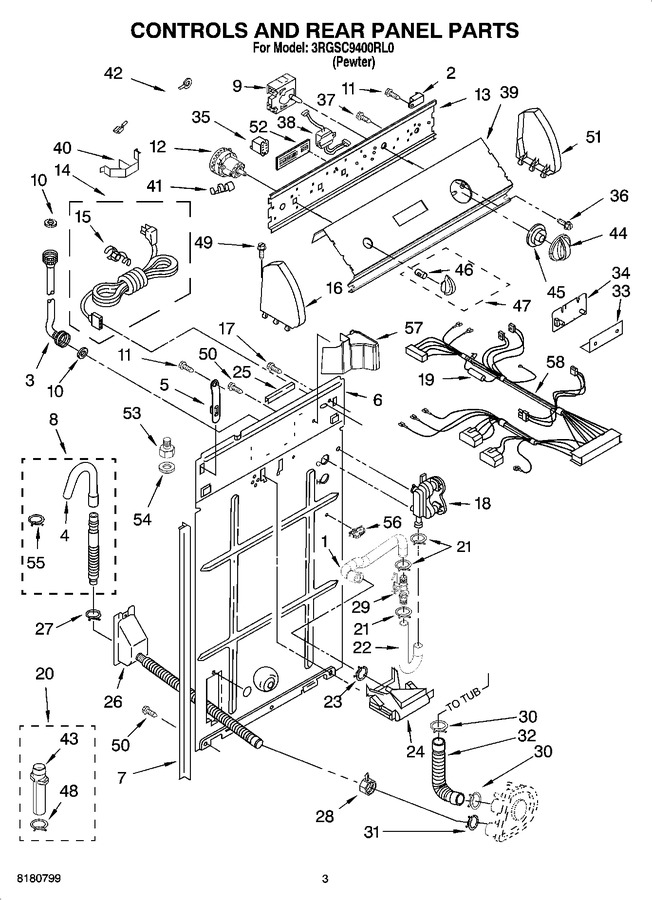

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 21.34
2	3952439		Mini-buzzer		Appelez-nous	-
3	WPW10615831		Hose, Water Inlet (red)   (Replaces: 3949382)				$ 98.71
3	WPW10615809		Hose, Water Inlet (blue)   (Replaces: 3949383)				$ 99.72
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 93.20
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318405		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 60.90
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
9	3954781		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
10	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339326		Switch, Water Level   (Replaces: 3366845)			Immediately	$ 87.97
13	3950194		Bracket, Control		Appelez-nous	-
14	8316047		Cord, Power		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	8541780		Cap, End (l.h.)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 288.04
19	WPW10111181		Fuse (in Harness)   (Replaces: 3951198)				$ 33.15
20	285750		Kit, Adapter		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 27.21
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	303294		Edge Protector		Appelez-nous	-
26	WPW10358151		Assembly-drain Hose   (Replaces: 8317959)				$ 105.93
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
28	3976395		Clamp, Hose				$ 11.96
29	3352282		Sensor, Inline				$ 66.68
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 26.68
33	8316039		Shield, Atc		Appelez-nous	-
34	WP3388228		Screw (2)   (Replaces: 3388228)				$ 6.95
34	WPW10110247		Control, Atc   (Replaces: 3407159)				$ 129.44
35	3952442		Relay (240 Vac)		Appelez-nous	-
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	3179795		Screw, Ground		Appelez-nous	-
38	3407160		Transformer		Appelez-nous	-
39	8565453		Panel, Console		Appelez-nous	-
40	8055003		Clip, Harness & Pressure Hose				$ 36.24
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 8.79
44	8544945		Knob, Timer				$ 38.06
45	WP8544947		Dial, Timer   (Replaces: 8544947)				$ 86.13
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
47	8544937		Knob, Control				$ 24.98
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	8541779		Cap, End (r.h.)		Appelez-nous	-
52	8546302		Switch, Clean Touch (7 Pad)		Appelez-nous	-
53	WP3357397		Adapter, Water Inlet Hose   (Replaces: 3357397)				$ 89.25
54	WP3357450		Washer, Inlet Hose Adapter   (Replaces: 3976290)				$ 11.01
55	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 7.56
56	3352944		Clip, Harness		Appelez-nous	-
57	8314879		Shield, Inlet Valve		Appelez-nous	-
58	8541754		Miscellaneous Parts Bag		Appelez-nous	-
58	3957869		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
58	N/A		Following Parts Not Illustrated		Appelez-nous	-
