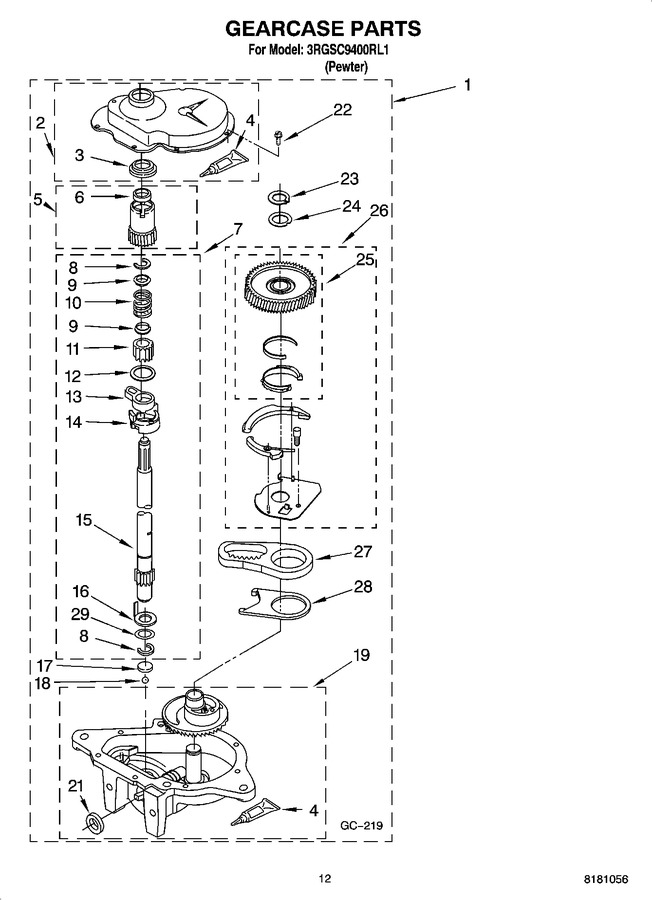

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3363395 | Gearcase (complete) (Replaces: 3949118) |
|
$ 433.73 | |||||
| 2 | 285202 | Cover, Gearcase |
|
- | |||||
| 3 | WP3349985 | Seal, Gearcase Cover (Replaces: 3349985) |
|
Immediately | $ 26.21 | ||||
| 4 | WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
Immediately | $ 104.39 | ||||
| 5 | 3360629 | Pinion, Spin (includes Item 25) (Replaces: 63320) |
|
Immediately | $ 469.13 | ||||
| 6 | WP356427 | Seal, Spin Pinion (Replaces: 356427) |
|
Immediately | $ 7.19 | ||||
| 7 | WP389387 | Shaft, Agitator (complete) (Replaces: 389387) |
|
$ 269.70 | |||||
| 8 | 90369 | Ring, Retaining (2) |
|
$ 5.04 | |||||
| 9 | 62677 | Retainer, Spring (2) |
|
$ 6.25 | |||||
| 10 | 62676 | Spring, Agitate |
|
$ 56.99 | |||||
| 11 | WP389387 | Gear, Agitate (includes 15 & 29) (Replaces: 63273) |
|
$ 269.70 | |||||
| 12 | 62619 | Washer, Agitate Gear |
|
$ 13.46 | |||||
| 13 | WP389387 | Cam Follower (includes 14) (Replaces: 62580) |
|
$ 269.70 | |||||
| 14 | WP389387 | Cam, Agitate (includes 13) (Replaces: 62581) |
|
$ 269.70 | |||||
| 15 | WP389387 | Shaft, Agitator (includes 11 & 29) (Replaces: 285509) |
|
$ 269.70 | |||||
| 16 | 62618 | Washer, Cam Thrust |
|
- | |||||
| 17 | 285205 | Bearing, Thrust (includes 18) (Replaces: 16018) |
|
$ 7.52 | |||||
| 18 | 285205 | Ball, Bearing (includes 17) (Replaces: 85529) |
|
$ 7.52 | |||||
| 19 | 3363395 | Bottom And Pinion Gearcase (Replaces: 3366851) |
|
$ 433.73 | |||||
| 21 | 285352 | Seal, Thrust Plug |
|
Immediately | $ 42.25 | ||||
| 22 | WP3351614 | Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8) (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 23 | 3362552 | Ring, Retaining |
|
- | |||||
| 24 | 285735 | Washer Kit, Thrust |
|
- | |||||
| 25 | WPW10233584 | Gear, Spin (Replaces: 3348567) |
|
$ 242.91 | |||||
| 26 | 388253A | Neutral Assembly (Replaces: 285595) |
|
Immediately | $ 58.73 | ||||
| 27 | 3360629 | Rack, Connecting (Replaces: 3349296) |
|
Immediately | $ 469.13 | ||||
| 28 | 3360629 | Actuator, Shift (Replaces: 62621) |
|
Immediately | $ 469.13 | ||||
| 29 | WP388815 | Washer, Intermediate (Replaces: 388815) |
|
$ 7.80 | |||||
| WP285195 | Sealer, Gasket (20 Fl. Oz.) (6 Ml) (Replaces: 285195) |
|
Immediately | $ 104.39 | |||||
| WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 28.20 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 4391675 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | ||||||
| 350572 | Oil, Gearcase (16 Oz.) |
|
Immediately | $ 91.61 | |||||
| 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) |
|
$ 41.86 | ||||||
| 40922 | Drain Hose (Replaces: 280131) |
|
$ 64.54 | ||||||
| 367031 | Drain Protector |
|
- | ||||||
| 280129A | Siphon Break Kit (Replaces: 280129) |
|
$ 111.71 | ||||||
| 280130 | Drain Hose |
|
- |
