SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf


06 - Icemaker, Optional

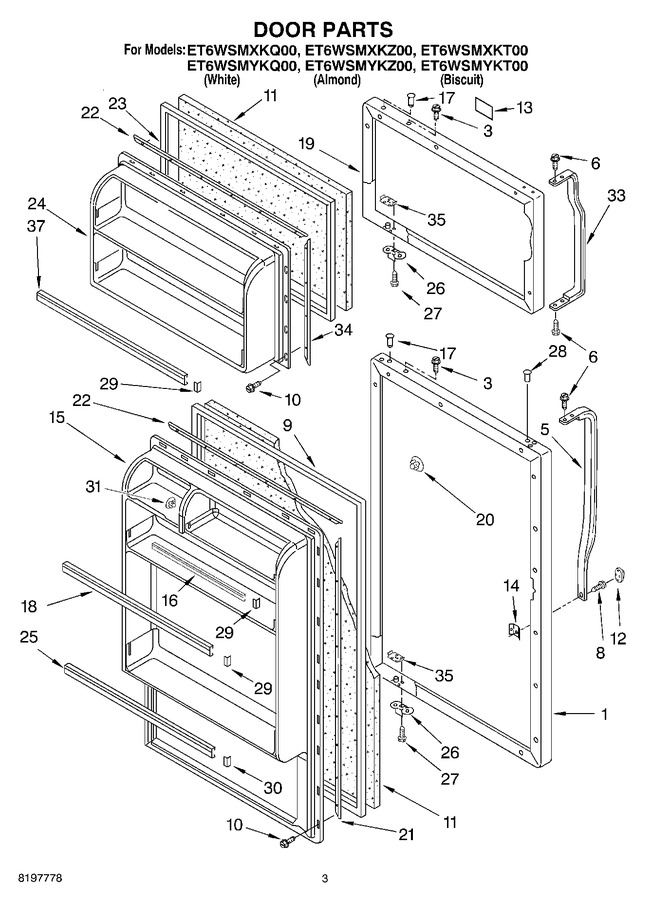

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210069W		Refrigerator Door Panel (also Order Item 11) (white)		Appelez-nous	-
1	2210069T		Refrigerator Door Panel (also Order Item 11) (biscuit)		Appelez-nous	-
1	2210069N		Refrigerator Door Panel (also Order Item 11) (almond)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
5	WP2202807W		Handle, R.c. (white)   (Replaces: 2202807W)				$ 162.98
5	2202807N		Handle, R.c. (almond)		Appelez-nous	-
5	2202807T		Handle, R.c. (biscuit)				$ 64.39
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	WP2319266T		Door Gasket, Magnetic   (Replaces: 2210059)				$ 171.60
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 8.14
12	2202819N		Screw Cover (almond)		Appelez-nous	-
12	2202819T		Cover, Screw (biscuit)				$ 8.02
13	2157907		Nameplate (white)				$ 6.56
13	2213233		Nameplate (biscuit)		Appelez-nous	-
13	2183209		Nameplate (almond Model)		Appelez-nous	-
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
15	2210057		Interior Door Panel (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf (upper)   (Replaces: 2163630)			Immediately	$ 63.40
17	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
18	2163628		Trim, Door (middle)		Appelez-nous	-
19	2197143T		Freezer Door Panel (also Order Item 11) (biscuit)		Appelez-nous	-
19	2197143		Freezer Door Panel (also Order Item 11) (almond)		Appelez-nous	-
19	2197086		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
20	2189008		Hole Plug (almond)		Appelez-nous	-
21	2210072		Retainer, Gasket				$ 49.15
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2191889)				$ 114.77
24	2197159		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2197356		Trim, Door Shelf (lower)   (Replaces: 2197356)				$ 144.81
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
28	2213324		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	2163372		Hole Plug		Appelez-nous	-
33	WP2202098		Handle, F.c. (white)   (Replaces: 2202098)				$ 156.82
33	2202099		Handle, F.c. (almond)		Appelez-nous	-
33	WP2215015		Handle, F.c. (biscuit)   (Replaces: 2215015)				$ 153.23
34	1122553		Retainer, Gasket		Appelez-nous	-
35	2183000		Plate, Tap				$ 36.19
37	WP2163629		Trim-door (2)   (Replaces: 2163629)			Immediately	$ 63.40

    View Diagram in Separate Window       Print Part List
