01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts

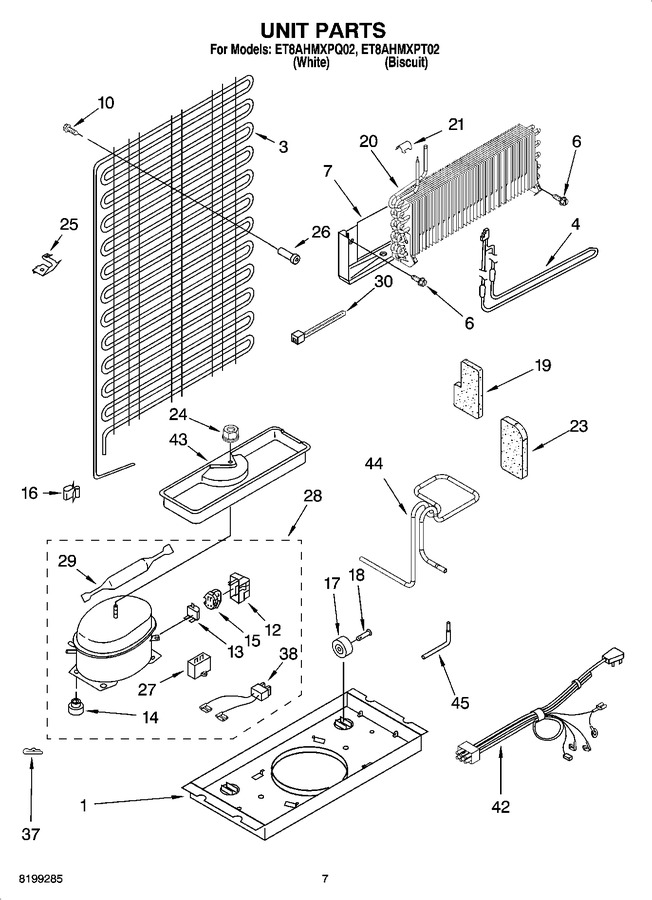

04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2221886 | Support Plate, Compressor |
|
- | |||||
| 3 | WPW10219349 | Condenser (Replaces: 2252731) |
|
$ 276.86 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 7 | 2264762 | Heat Shield |
|
- | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 12 | WP2162358 | Cover ((service)) (Replaces: 4387731) |
|
$ 90.75 | |||||
| 12 | 2217635 | Cover (production) |
|
- | |||||
| 13 | WP2214067 | Overload (service) (Replaces: 4390624) |
|
$ 131.66 | |||||
| 13 | 2183408 | Overload (production) |
|
$ 136.24 | |||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 14 | WPW10169124 | Grommet (production) (Replaces: 2264447) |
|
Immediately | $ 7.19 | ||||
| 15 | 2183454 | Start Relay (service) |
|
- | |||||
| 15 | WP10097204 | Start Relay (production) (Replaces: 2262182) |
|
$ 131.16 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2262072) |
|
Immediately | $ 18.21 | ||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 317.35 | ||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.24 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Bracket, Condenser |
|
- | |||||
| 27 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 27 | WPW10662129 | Capacitor (production) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 28 | 2217634 | Compressor (includes Items 12,13,14,15, 27,29 & 38) (also Order 482801 Installation Kit & 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 52.57 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2201796) |
|
Immediately | $ 52.57 | ||||
| 30 | WPW10339879 | Wire Tie (Replaces: 2263990) |
|
$ 7.90 | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (service Only) (Replaces: 4387765) |
|
$ 8.10 | |||||
| 42 | 2202155 | Wire Assy. Unit |
|
- | |||||
| 43 | 2201801 | Tray, Evaporator |
|
$ 78.52 | |||||
| 44 | 2264515 | Tube, Discharge |
|
- | |||||
| 45 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 45 | 978030 | Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (3/4``)) |
|
$ 130.71 | |||||
| 45 | WP978025 | Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (1/4``)) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 45 | 978026 | Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (5/16``)) |
|
Immediately | $ 128.09 | ||||
| 45 | SF5538 | Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (3/8``)) (Replaces: 978027) |
|
$ 21.64 | |||||
| 45 | 978028 | Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (1/2``)) |
|
- | |||||
| 45 | 978029 | Vs20001 Tube, Process Following Parts Not Illustrated And Optional Parts Not Included (valve, Access (5/8``)) |
|
$ 93.85 |
