SELECT A DIAGRAM

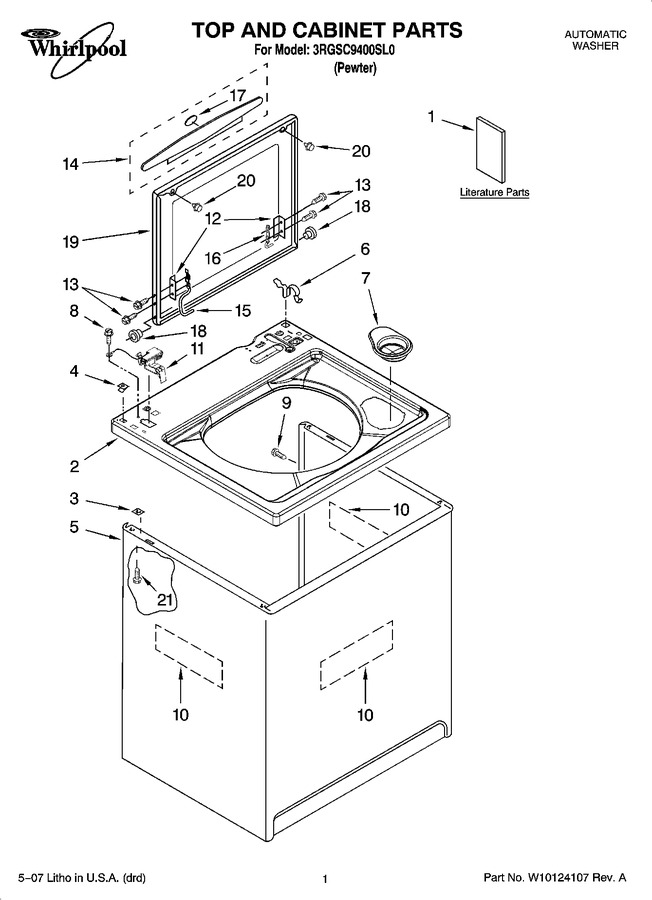

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8558610		Use & Care Guide		Appelez-nous	-
1	W10131577		Installation Instructions		Appelez-nous	-
1	3954736		Wiring Diagram		Appelez-nous	-
1	W10131548		Installation & User Guide		Appelez-nous	-
2	8543449		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 8.07
4	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
5	3956112		Cabinet		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
7	8566266		Dispenser, Bleach				$ 39.81
8	W10080580		Screw, Ground		Appelez-nous	-
9	W10080590		Screw, 10-16 X 1/2		Appelez-nous	-
10	3976348		Sound Dampener, Cabinet (3)				$ 37.92
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
12	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 8.19
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
14	3957287		Handle, Lid		Appelez-nous	-
15	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
16	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 28.82
17	3957286		Insert, Handle		Appelez-nous	-
18	8319539		Bearing, Lid Hinge (2)				$ 5.51
19	8577123		Lid		Appelez-nous	-
20	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 8.33
21	W10080680		Screw, 10-16 X 3/8 (4)		Appelez-nous	-
